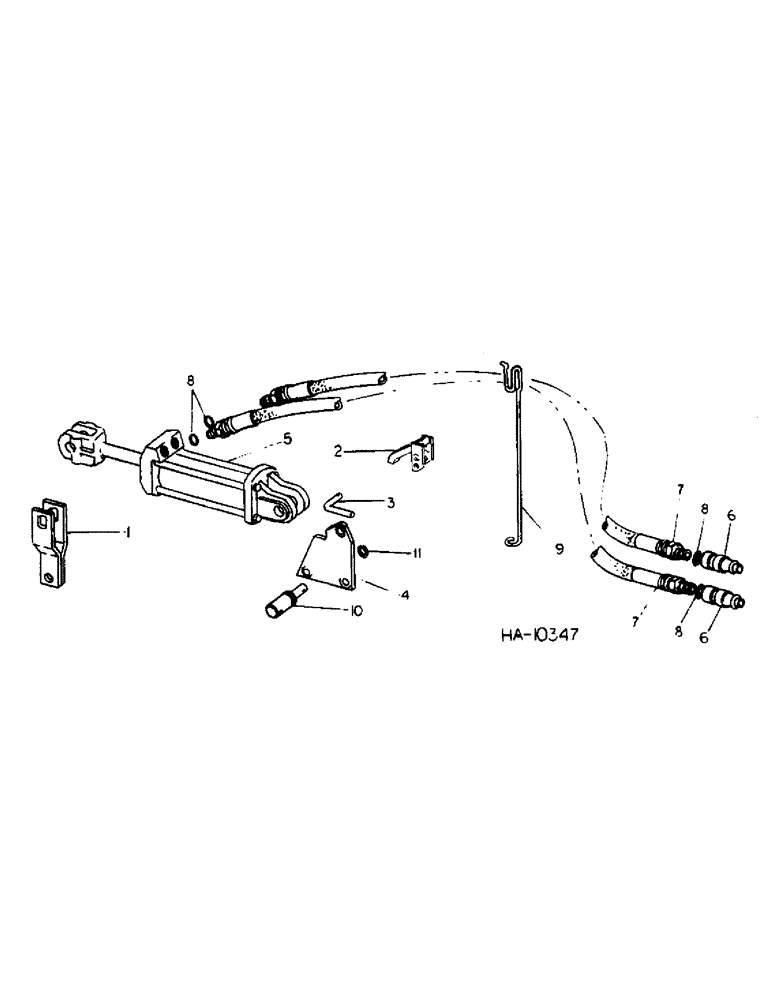

Запчасти Case IH 5500 (C-11) - DEPTH CONTROL HYDRAULICS, TRAIL BEHIND

1

608313R11

YOKE

ASSY, hydraulic locking

1шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, 3/4 x 2.062 pln hd type 5

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

811032C1

RETAINER

ASSY, hyd cyl

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

quick attachable cotter

1шт.

4

810266C2

BRACKET

hyd cyl front anchor

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic, Replaces 403842R94, 371292R95 and 145352C91, Refer to cyl-1 for components

1шт.

79978C2

SEAL KIT

KIT, o-ring and seal service

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, 7/8-14 female x 3/4-16 male o-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN, cylinder headed

2шт.

520175R1

CLIP

PIN, quick attachable cot

2шт.

6

395149R1

QUICK MALE COUPLING

COUPLER, 7/8-14 thread poppet-type male

1шт.

6

544787R91

COUPLING, BREAK AWAY

COUPLER, 7/8-14 thread self-sealing type male

1шт.

6

1272399C2

QUICK MALE COUPLING

COUPLER, 7/8-14 thread self-sealing type male, ISO standard

1шт.

6

1285718C2

QUICK MALE COUPLING

COUPLER, 3/4-16 thread self-sealing type male, ISO standard

1шт.

407045R1

FITTING

BUSHING, 3/4-16 str thd x 7/8-14 str thd, Used to adapt 3/4-16 hose fitting to 7/8-14 coupling

1шт.

407545R1

FITTING

BUSHING REDUCER, 7/8-14 str thd x 3/4-16 str thd, Used to adapt 7/8-14 hose fitting to 3/4-16 coupling

1шт.

7

372437R91

HOSE

1/2 x 112 inch hydraulic, 7 foot model

2шт.

7

630457R91

HOSE ASSY.

HOSE, 1/2 x 132 inch hydraulic, 10 ft model

2шт.

7

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch hydraulic, 13 ft model

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, Used with 7/8-14 thread

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, Used with 3/4-16 thread

1шт.

9

651793R2

SUPPORT

hydraulic hose

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

10

NOT USED THIS APPLICATION

1шт.

11

NOT USED THIS APPLICATION

1шт.
