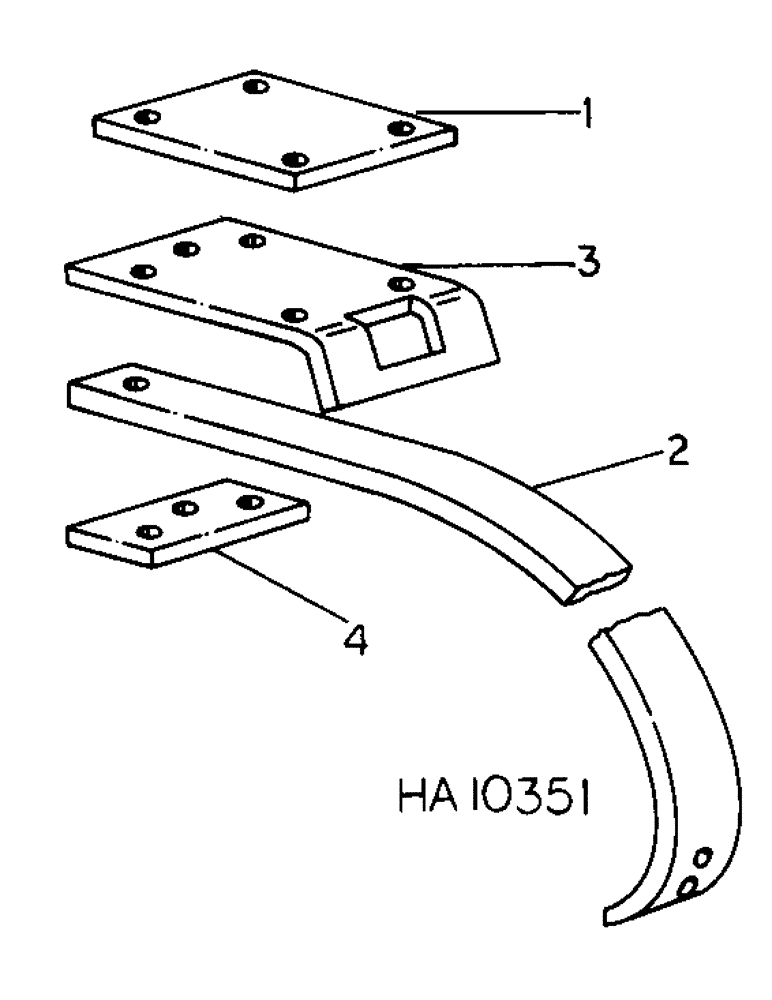

Запчасти Case IH 5500 (A-04) - GROUND WORKING TOOLS AND SHANKS, RIGID CLAMP AND SHANK

1

1284069C1

PLATE

BLOCK, clamping, Replaces 592239R1

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/2 type 5, w/25 inch clearance shank

2шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8 type 5, w/32 inch clearance shank

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , w/32" clearance shank 5/8"

1шт.

2

598939R1

FINGER

SHANK, 25 inch clearance ground working tool

1шт.

2

609130R3

SHANK

32 inch clearance ground working tool

1шт.

3

598938R1

BRACKET

25 inch clearance shank clamping

1шт.

3

609131R2

SUPPORT ASSY.

BRACKET, clamping 32 inch clearance

1шт.

4

598937R1

BAR

clamping bracket

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5, machine equipped w/25 inch shank

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, Use w/25 in. shank

1шт.
