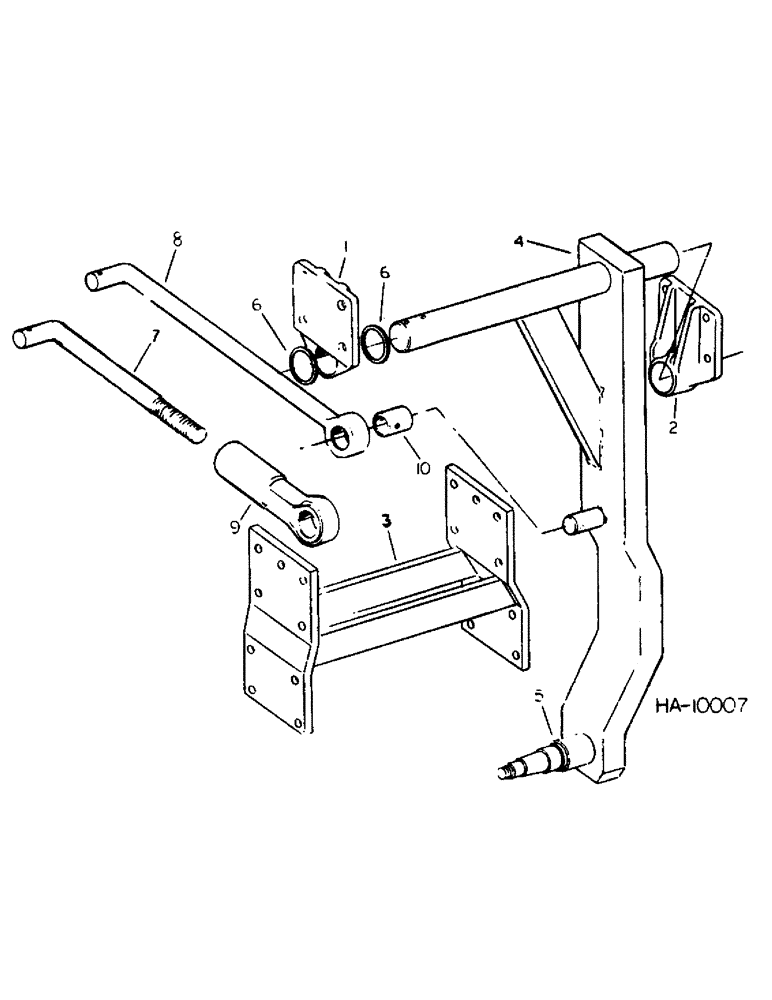

Запчасти Case IH 5500 (C-08) - AXLE AND CONNECTIONS, TRAIL BEHIND

1

608315R1

SUPPORT

axle long

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2 znd type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

608314R1

SUPPORT

axle short

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 znd type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

609135R93

HANGER

ASSY, axle, 10 foot and 13 ft high clearance

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

8шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

24шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

24шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

4

608316R91

AXLE

ASSY, wheel, Includes 1-608321R1, spindle

2шт.

108660

PIN,5/16" x 3"

Split (Cotter), 5/16" x 3"

8шт.

5

608321R1

SPINDLE

axle

2шт.

6

22811R1

WASHER

2.031 x 2.750 x .067

8шт.

7

608324R1

BAR

ROD, adjustable lift, reg clearance

1шт.

7

609127R1

ROD

adjustable lift, high clearance

1шт.

8

1284015C1

ROD

rigid lift, Replaces 608325R2 by also ordering bushing, 112886C1, reg clearance

1шт.

8

1284013C1

ROD

rigid lift, Replaces 609128R1 by also ordering bushing 112886C1, high clearance

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

9

1284014C1

EYE

lift link, Replaces 608322R2 by also ordering bushing, 112886C1

1шт.

10

608323R2

BUSHING,32.16mm ID x 41.27mm OD x 40.89mm L

lift rod, Used only with rod 608325R2 & 609128R1 and eye 608322R2

2шт.

10

112886C1

BUSHING

lift rod, Used only with rod, 1284013C1 & 1284015C1 and eye 1284014C1

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.
