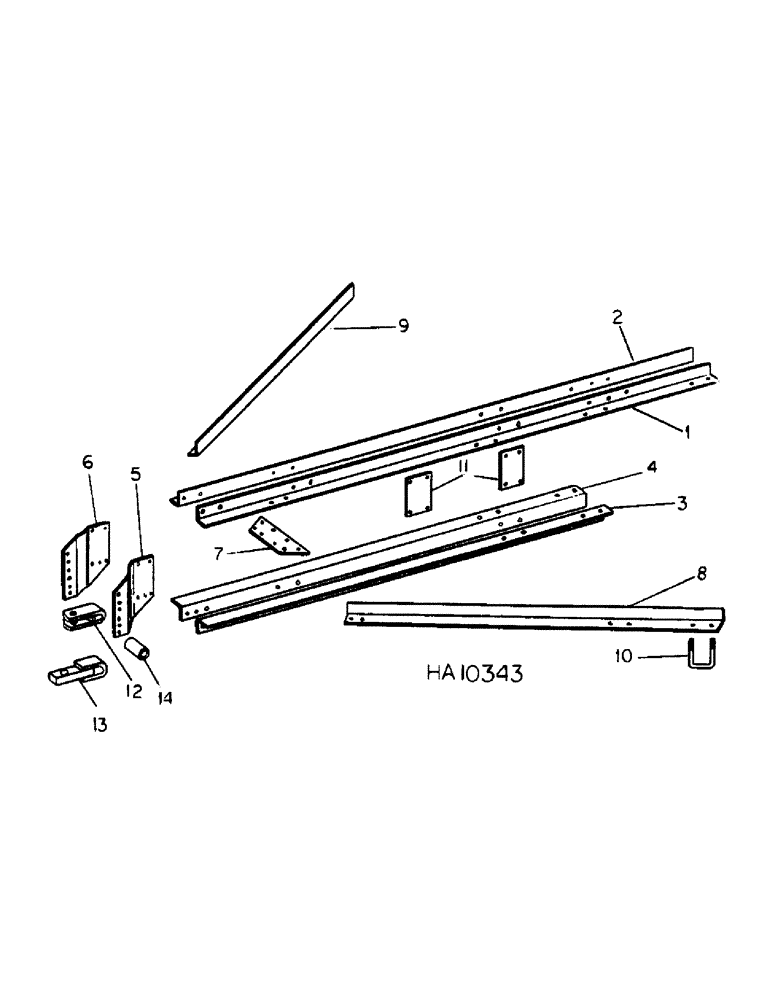

Запчасти Case IH 5500 (C-06) - TRACTOR HITCH, TRAIL BEHIND, 13 FOOT MODEL

1

608286R4

ANGLE

hitch centre upper LH, regular clearance

1шт.

1

609121R1

ANGLE

hitch centre upper LH, high clearance

1шт.

2

608287R4

ANGLE

hitch centre upper RH, regular clearance

1шт.

2

609122R1

ANGLE

hitch centre upper RH, high clearance

1шт.

3

608292R3

ANGLE

hitch centre lower LH, regular clearance

1шт.

3

609123R1

ANGLE

hitch centre lower LH, high clearance

1шт.

4

608293R3

ANGLE

hitch centre lower RH, regular clearance

1шт.

4

609124R1

ANGLE

hitch centre lower RH, high clearance

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608495R1

KNIFE SECTION

PLATE, hitch LH

1шт.

6

608496R1

ASSEMBLY

PLATE, hitch RH

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

5шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

7

608281R2

BAR

hitch angle connecting

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

3шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

608299R1

ANGLE

hitch support LH, regular clearance

1шт.

8

609125R1

ANGLE

hitch support LH, high clearance

1шт.

9

608300R1

ANGLE

hitch support RH, regular clearance

1шт.

9

609126R1

ANGLE

hitch support RH, high clearance

1шт.

10

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

hitch support angle

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

594853R1

BLOCK

BAR, hitch tie

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

1279227C1

TRAILER HITCH

CLEVIS, heavy duty hitch, Replaces 597324R1

1шт.

13

605866R91

TOW BAR

TONGUE ASSY, heavy duty hitch, special

1шт.

813452C1

PIN

1 x 5-5/8 in. headless, Replaces bolt, 608501R2

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

597326R1

SPACER

hitch clevis

1шт.
