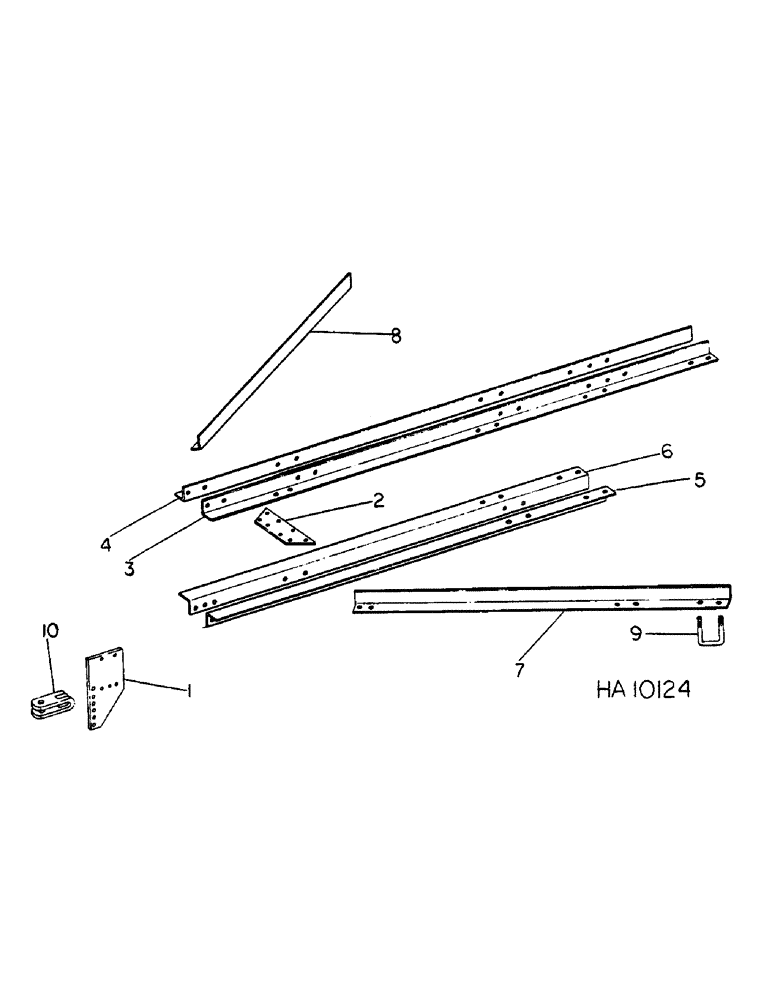

Запчасти Case IH 5500 (C-04) - TRACTOR HITCH, TRAIL BEHIND, 7 FOOT MODEL

1

608279R1

PLATE

tractor hitch

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

5шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

2

608281R2

BAR

hitch angle connecting

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

3шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

608282R2

HITCH ASSY, TRAILER

ANGLE, hitch centre upper LH

1шт.

4

608283R2

ANGLE

hitch centre upper RH

1шт.

5

608288R2

ANGLE

hitch centre lower LH

1шт.

6

608289R2

ANGLE

hitch centre lower RH

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

608295R1

ANGLE

hitch support LH

1шт.

8

608296R1

ANGLE

hitch support RH

1шт.

9

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

hitch support angle

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

601910R3

CLEVIS

hitch

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1-8 x 4-1/2 hex-hd-dld

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

9849633

NUT,1"-8, G5

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
