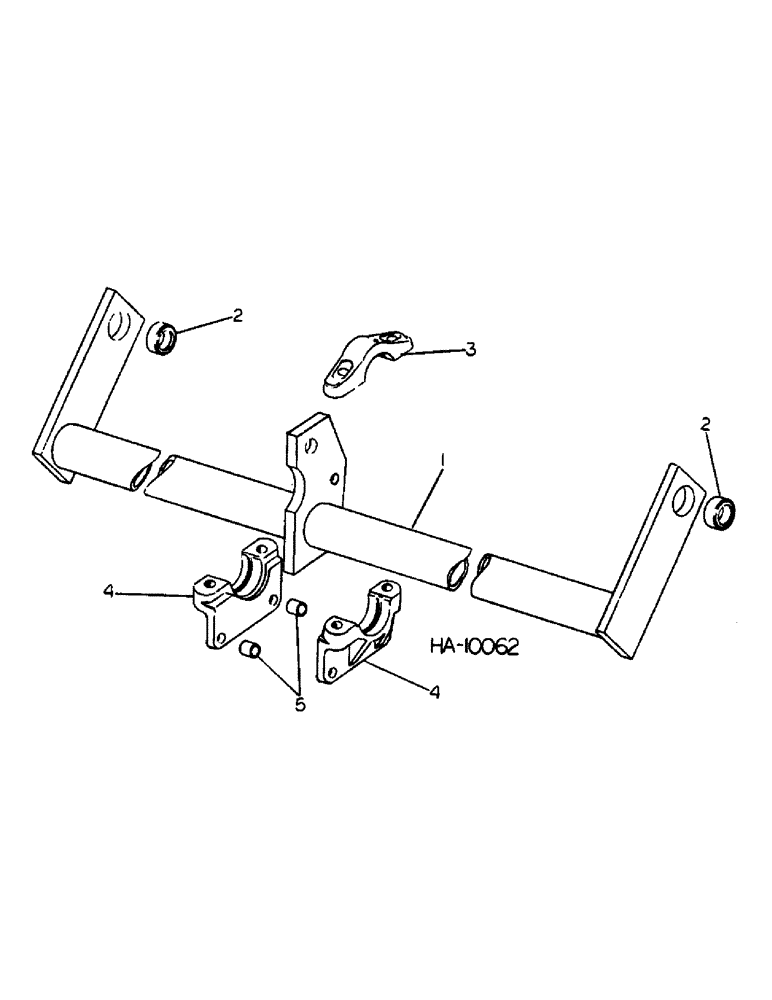

Запчасти Case IH 5500 (C-03) - DEPTH CONTROL ROCKSHAFT, TRAIL BEHIND

1

608302R91

ROCKSHAFT

ASSY, 7 foot model

1шт.

1

608303R92

ROCKSHAFT

ASSY, 10 foot model

1шт.

1

608304R92

ROCKSHAFT

ASSY, 13 foot model, Includes 2-608310R1 bushing

1шт.

2

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

outer arm

2шт.

3

608311R1

CAP

rockshaft bracket

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

608312R2

BRACKET

rockshaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

5528S

SPACER

rockshaft bracket

2шт.
