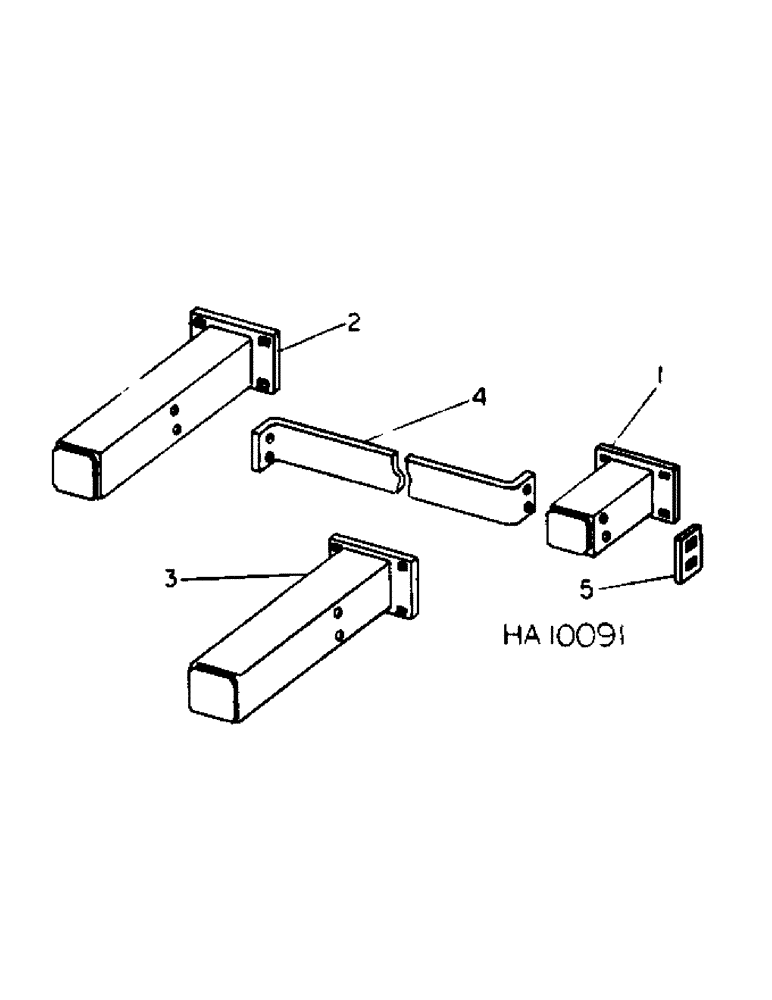

Запчасти Case IH 5500 (C-02[A]) - FRAME EXTENSIONS

1

608331R91

EXTENSION

ASSY, 1 foot frame

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

2

608332R92

EXTENSION

ASSY, 2 feet frame

2шт.

Ref #2 - These extensions have four holes instead of two as illustrated. 08/19/96

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

3

NOT USED THIS APPLICATION

1шт.

4

608338R1

STRAP

extension connecting, Use w/608332R92, extension

2шт.

18728R1

BOLT, 5/8 x 6 crg type 1 Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608339R1

BLOCK

BAR, extension clamping, Use w/608332R92, extension

4шт.
