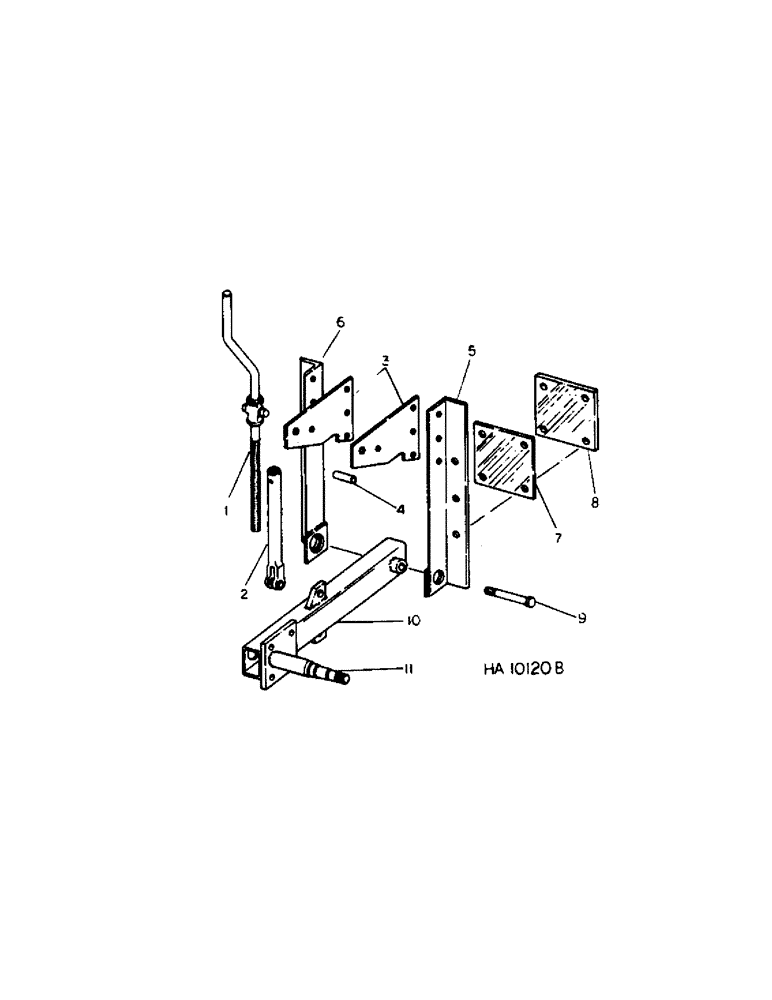

Запчасти Case IH 5500 (B-10) - GAUGE WHEEL MOUNTING PARTS, DIRECT MOUNTED, CRANK ADJUSTABLE TYPE

1

599815R1

CRANK

ASSY, gauge wheel adjusting

2шт.

21753R1

WASHER

.781 x 1.500 x .054 znd

4шт.

112011

PIN,1/8" x 7/8"

1/8 x 7/8 pln sq end str

2шт.

2

458520R1

THREADED TIE-ROD

YOKE, adjusting crank

2шт.

126098

FITTING

5/16 hole lub

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 1

2шт.

3

599814R2

BAR

adjusting crank guide

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

4

517920R1

SPACER,1/2" Pipe x 2"

guide bar

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

599807R1

ANGLE

ASSY, gauge wheel mtg LH

2шт.

6

599808R1

ANGLE

ASSY, gauge wheel mtg RH

2шт.

7

599812R1

BAR

angle clamp rear

2шт.

8

599813R1

BAR

angle clamp

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

9

17776R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 2

3/4-10 x 4-1/2 hex-hd, gauge wheel axle pivot

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 slt type 5

2шт.

23245R1

WASHER

.781 x 1.750 x .164

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

10

599819R2

AXLE HOUSING

AXLE ASSY, gauge wheel, Includes 1-599823R11, spindle

2шт.

11

599823R11

SPINDLE

ASSY, axle, Includes 1-369857R1, washer, 1-427640, nut & 1-137204, pin

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4 NF slt type 5

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.
