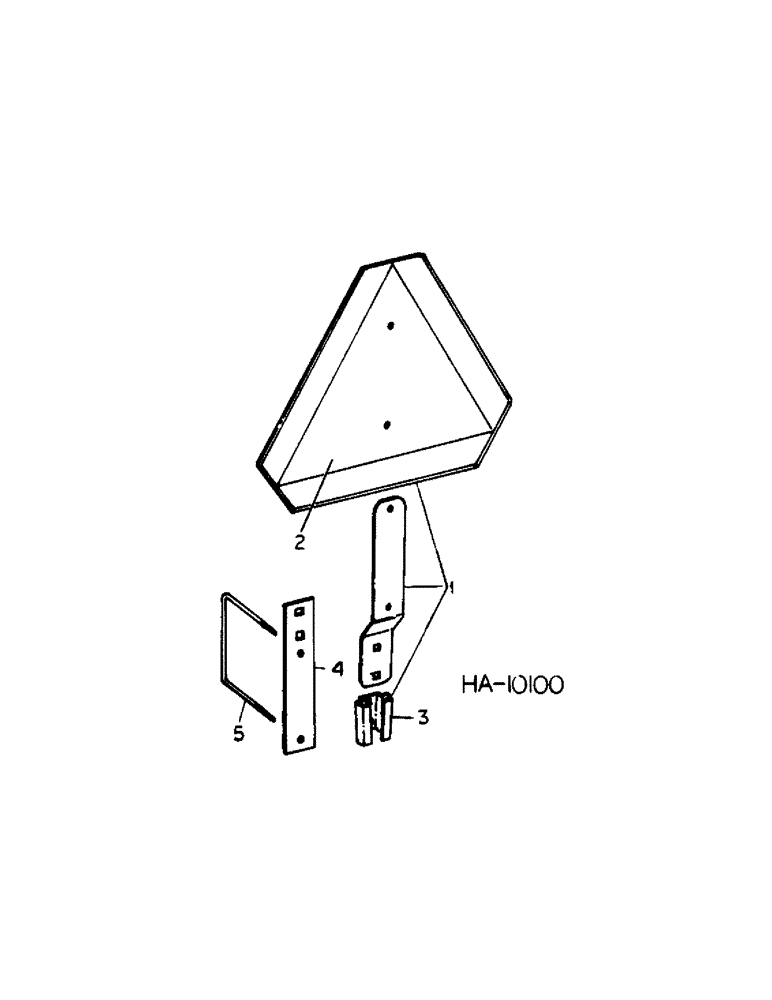

Запчасти Case IH 5500 (B-10[A]) - SLOW MOVING VEHICLE EMBLEM

1

407220R1

PRODUCT GRAPHIC

PACKAGE, SMV emblem, steel, Replaces 407218R1

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, SMV emblem film kit

1шт.

3

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

608328R1

BAR

SMV emblem mounting

1шт.

5

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U-BOLT, mounting bar

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

.281 x .734 x.056

2шт.
