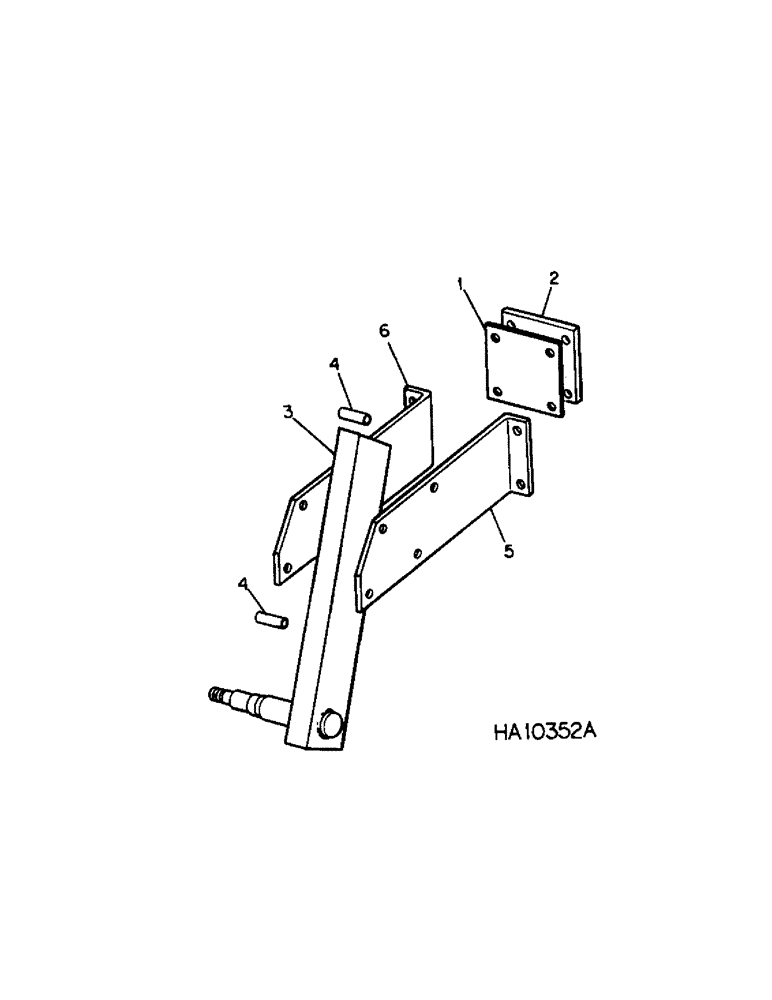

Запчасти Case IH 5500 (B-07) - GAUGE WHEEL MOUNTING, SLIDE ADJUSTING, DIRECT MOUNTED, MOUNTING FORWARD OF FRONT BEAM

1

608465R1

BAR

support anchor

2шт.

2

608466R1

BLOCK

BAR, support anchor

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

3

812163C2

AXLE HOUSING

AXLE ASSY, gauge wheel

2шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

868828R1

SPACER,3/4" X-Strng Pipe x 1 7/8"

axle mounting bolt

4шт.

5

608463R1

SUPPORT

gauge wheel axle LH

2шт.

6

608464R1

SUPPORT

gauge wheel axle RH

2шт.
