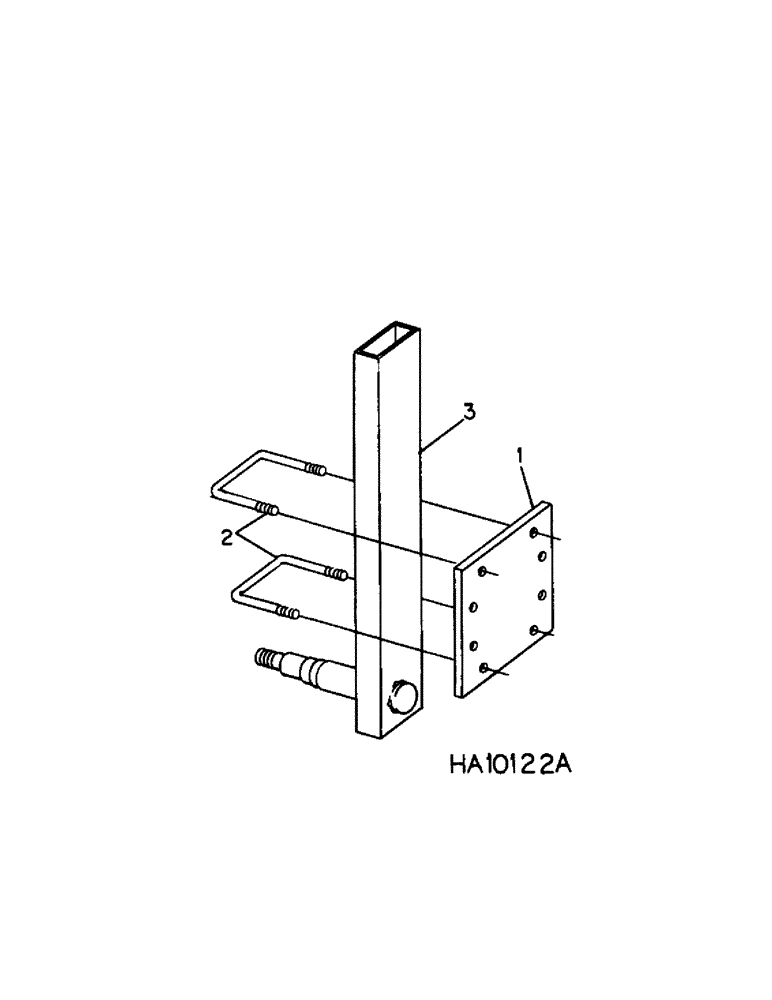

Запчасти Case IH 5500 (B-07[A]) - GAUGE WHEEL MOUNTING, SLIDE ADJUSTING, DIRECT MOUNTED, MOUNTING AT FRAME END

1

811064C1

BAR

gauge wheel axle mounting

2шт.

811627C1

BOLT

U-BOLT, mounting bar

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

609871R1

BOLT,Wheel, 5/8" - 11 x 3 3/8", Class 2

U-BOLT, gauge wheel axle mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

812163C2

AXLE HOUSING

AXLE ASSY, gauge wheel

2шт.
