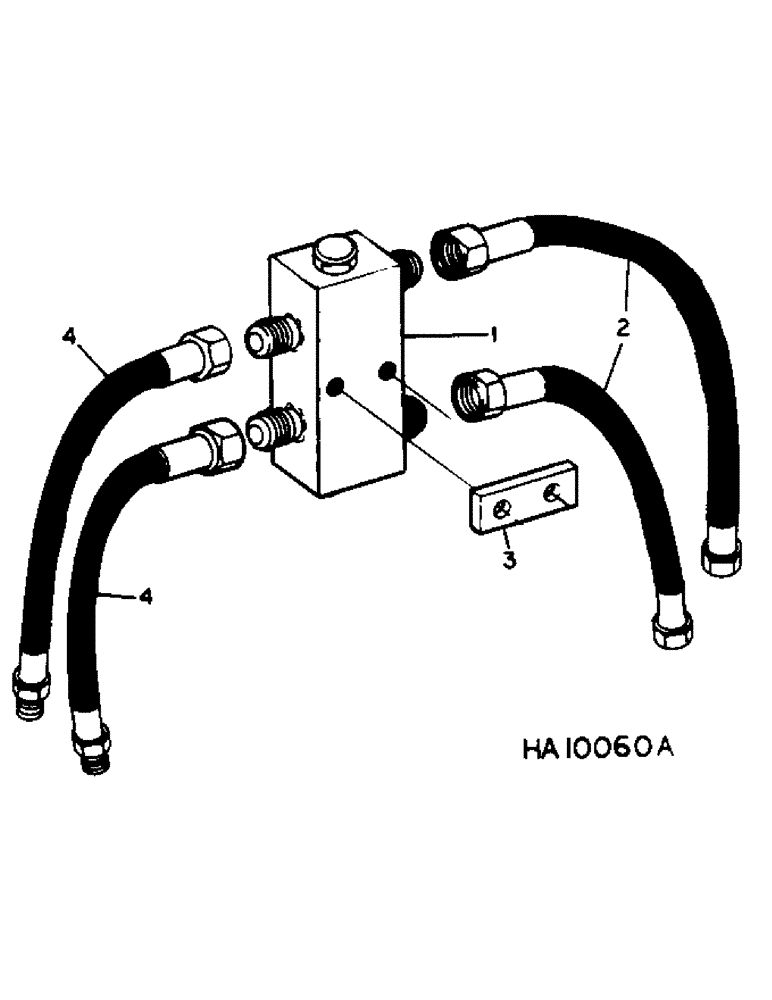

Запчасти Case IH 5500 (G-49[A]) - ALTERNATING CHECK VALVE ASSEMBLY, USE WITH DEPTH CONTROL FOR TRACTORS WITHOUT CHECK VALVE

1

142864C95

VALVE

ASSY, alternating check, Service parts are

1шт.

85145C1

PIN

ball retainer

2шт.

372649R1

SPRING

check valve

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, upper plug

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6, lower plug

1шт.

2

393704R92

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 31 in. hydraulic valve to hydraulic lines, Replaces 1/2 in. hose 810200C1 by also ordering nut, 9403528, nut, 9403529, reducer, 9403400, and reducer 9403402

2шт.

3

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

117064C1

HOSE

ASSY, 1/2 x 48 in. hydraulic, valve to tractor coupler

2шт.
