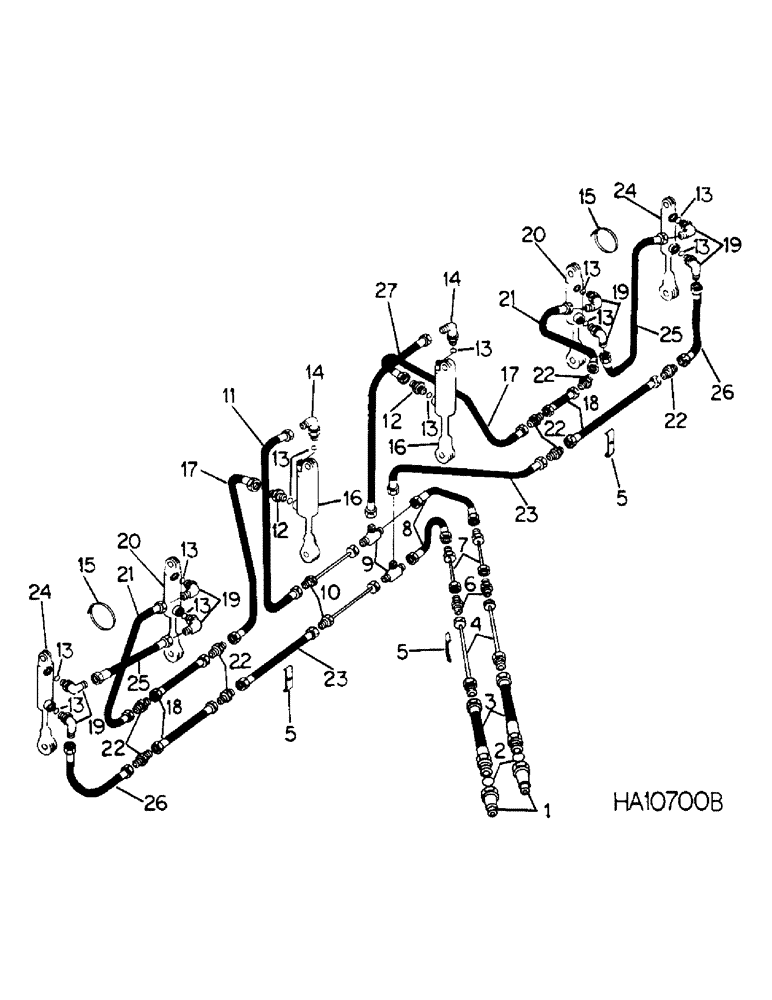

Запчасти Case IH 5500 (G-39) - DEPTH CONTROL HYDRAULIC SYSTEM, WING TYPE, 45 FOOT DOUBLE FOLD, WITH WELDED TYPE CYLINDER

1

COUPLER, hydraulic hose male, Refer to hydraulic couplers unit for details

2шт.

2

O-RING, hydraulic coupler, Refer to hydraulic couplers unit for details

2шт.

3

195504C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 80 in. hydraulic front, Not for use with check valve, Replaces 811261C1 by also ordering connector, 935433R1, nut, 9403528 and reducer, 9403400

2шт.

4

129671C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 105 in., depth control front hydraulic, Replaces tube, 813261C1 by also ordering connector, 9403528 and reducer, 9403400

2шт.

5

614323R2

CLAMP

hydraulic tube

6шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

7

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSY, 3/8 x 55 in. hydraulic front extension, Replaces tube, 810134C1 by also ordering connector, 1284305C1, nut, 94034528 and reducer, 9403400

2шт.

8

1270738C1

HYDRAULIC HOSE,0.38" ID x 25.00", SAE 100R1 A

Depth Control Corner to Hydraulic, Replaces 810708C1 0.38" ID x 25.00", SAE 100R1 A

2шт.

9

9402982

TEE,3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

10

1285380C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 25 in. master hyd cylinder RH, Replaces tube, 813265C1 by also ordering connector, 1284305C1 nut, 9403528, and reducer, 9403400

2шт.

11

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSY, 3/8 x 55 in. master hyd master cylinder pressure, Replaces 810707C1

2шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg flared tube short swivel hydraulic

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

12шт.

14

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hydraulic 37 deg flared tube 90 deg adjustable

2шт.

15

306132C1

CABLE TIE,14.5" L

STRAP, hydraulic hose tie, Replaces 816502C1

8шт.

16

149950C92

CYLINDER

ASSY, 4.25 x 8 in. double acting hydraulic, depth control master, Replaces 810185C91, 149949C91 and 813526C91, Refer to cyl-1 for components

2шт.

1252009C2

SEAL KIT

o-ring and seal service

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, L

2шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

2шт.

810751C1

PIN

1 x 3.5 std-hd-dld spcl

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

17

813077C1

HOSE ASSY.

HOSE ASSY, 3/8 x 55 in. master cylinder to slave cylinder hydraulic, Replaces 810716C1

2шт.

18

810570C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 90 in. slave cylinder hydraulic

4шт.

19

935036R91

ELBOW

slave cylinder 90 deg

8шт.

20

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

2шт.

20

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

20

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

80117C2

SEAL KIT

o-ring and seal service (Replaces 80115C2)

1шт.

810751C1

PIN

1 x 3.5 std-hd-dld spcl

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

21

129672C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 39 in. slave cylinder hydraulic, Replaces 813642C1

2шт.

22

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

3/8 C-Z hyd flared tube

8шт.

23

813006C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 85 in. return jumper hydraulic, Replaces 810706C1 by also ordering nut, 9403528 and reducer, 9403400

1шт.

24

1282328C92

CYLINDER ASSY.

CYLINDER ASSY, 3.75 x 8 in. double acting hydraulic, slave, Replaces 145428C93, 810706C1 by also ordering nut 9403528 and reducer 9403400

2шт.

24

87423766R

REMAN-HYD CYLINDER

3.75" x 8"

2шт.

24

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

80115C2

SEAL KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

cylinder mounting

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

25

813006C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 85 in. slave cylinder pressure

2шт.

26

812381C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 115 in. slave cylinder return

2шт.

27

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

Assy - LH master cylinder, Replaces 819842C1 9.52 mm ID x 1905.00 mm

1шт.
