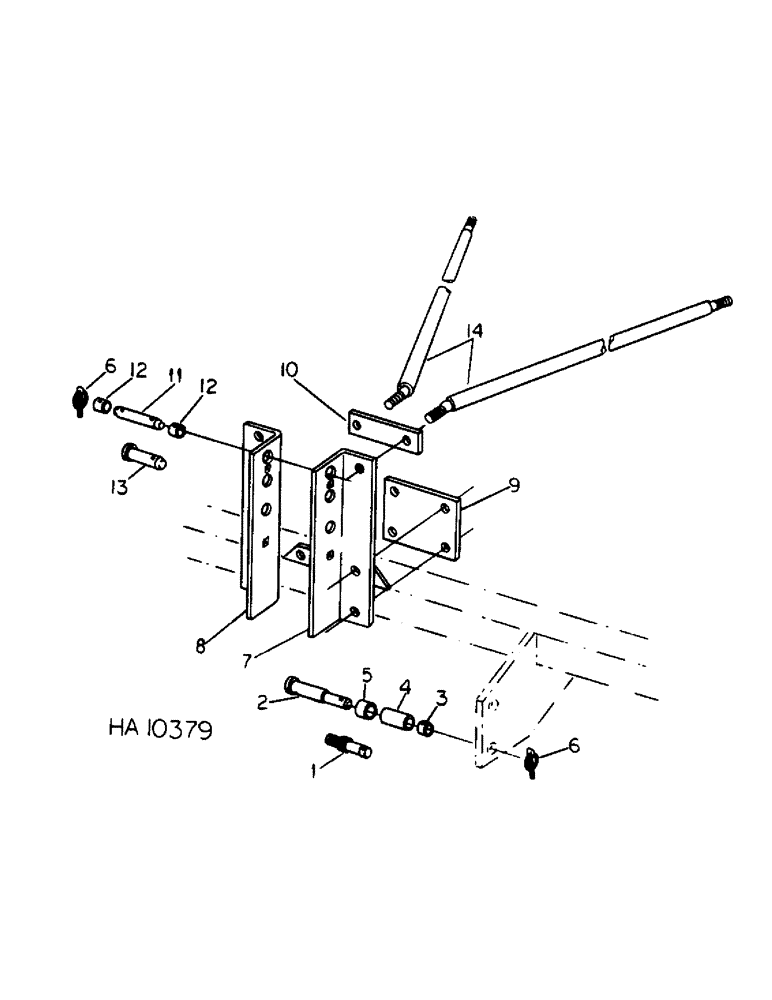

Запчасти Case IH 5500 (B-06) - THREE POINT HITCH, DIRECT MOUNTED, THREE RANK MODELS

1

472790R2

STUD

PIN, hitch outer, 7 foot model

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8 NF type 5

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

21214R1

WASHER

1.156 x 2.000 x .105

4шт.

2

599799R1

PIN

hitch outer, 13 foot model

2шт.

3

599800R1

BUSHING

hitch pin, 13 foot model

2шт.

4

599801R1

SPACER

pin inner, 13 foot model

2шт.

5

599802R1

SPACER

pin outer, 13 foot model

2шт.

6

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN ASSY, locking, 4 used 7 & 13 ft cat 2 hitch, 3 used 7 & 13 ft cat 3 hitch

1шт.

7

812002C2

ANGLE

ASSY, hitch centre LH

1шт.

8

812011C2

ANGLE

hitch centre RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

9

812007C1

BAR

hitch centre angle support

1шт.

10

812024C1

BAR

truss rod and hitch tie

1шт.

11

599803R1

PIN

hitch center, For 7 and 13 ft. w/category 2 hitch, not w/quick coupler

1шт.

12

599804R1

BUSHING

pin, used w/pin 599803R1

2шт.

13

392211R2

PIN

hitch center, For 7 and 13 ft. w/category 3 hitch not w/quick coupler

1шт.

14

812015C1

ROD

ASSY, truss

2шт.

9849633

NUT,1"-8, G5

8шт.
