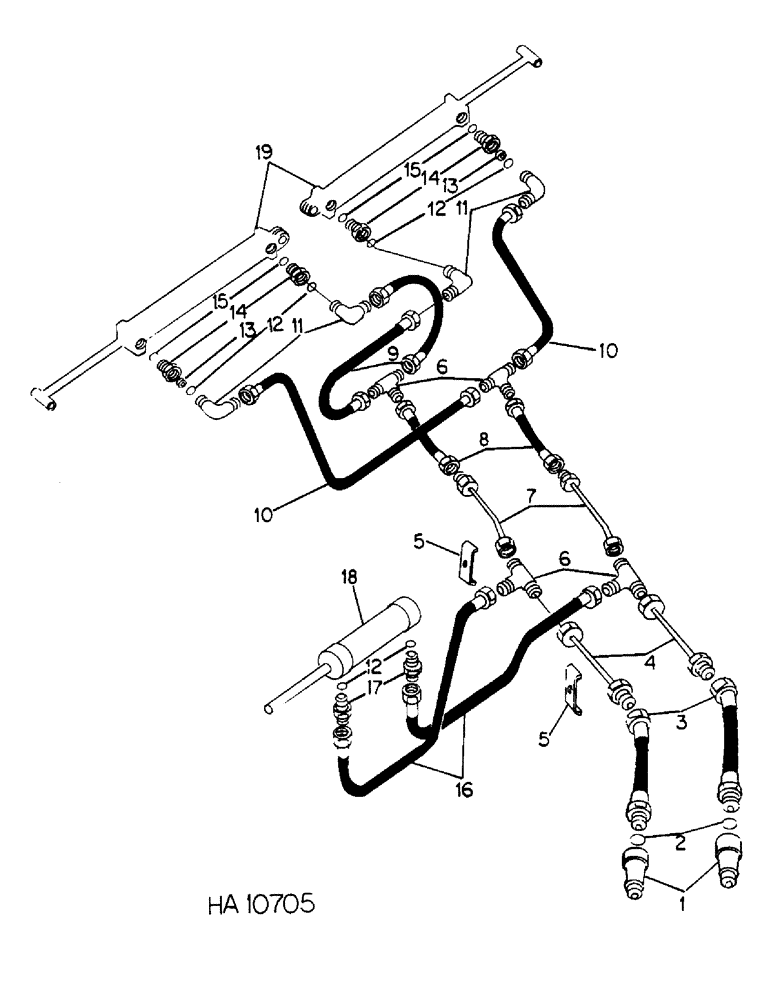

Запчасти Case IH 5500 (G-31) - WING LIFT HYDRAULIC SYSTEM, 33 FOOT WING TYPE, MACHINES BUILT 1981 THROUGH 1985

1

COUPLER, hydraulic hose male, Refer to hydraulic couplers unit for details

2шт.

2

O-RING, hydraulic coupler, Refer to hydraulic couplers unit for details

2шт.

3

195504C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 80 in. hydraulic front, Not for use with check valve, Replaces 811270C1, by also ordering connector, 935433R1, nut, 9403528 and reducer, 9403400

2шт.

4

812381C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 115 in. hydraulic front, Replaces tube 813404C1, by also ordering connector, 1284305C1

2шт.

5

614323R2

CLAMP

hydraulic tube

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 hyd 37 deg flared tube

4шт.

7

1285380C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 50 in. hydraulic front, Replaces tube 810140C1 by also ordering union, 9402786

2шт.

8

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

HOSE ASSY, 1/4 x 70 in. wing lift cylinder hydraulic, Replaces 810715C1

2шт.

9

810604C1

HYDRAULIC HOSE

HOSE ASSY, 1/4 x 29 in. wing lift pressure hydraulic

2шт.

10

812382C1

HYDRAULIC HOSE

HOSE ASSY, 1/4 x 50 in. wing lift return hydraulic

2шт.

11

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

4шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

6шт.

13

610767R1

DISC

WASHER, retarding disk

2шт.

14

1252130C1

ADAPTER

ADAPTOR, wing lift cyl, Replaces 610952R1

4шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

16

147876C1

HYDRAULIC HOSE

HOSE ASSY, 1/4 x 45 in. lock-out cyl, Replaces 810592C1

2шт.

17

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

18

1286364C91

CYLINDER ASSY.

CYLINDER ASSY, 1.5 x 4 in. double acting hydraulic, Replaces 810998C91, Refer to cyl-1 for components

1шт.

85020C1

SEAL KIT

KIT, o-ring and seal service

1шт.

23171R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3 hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19

224795C91

CYLINDER

ASSY, 4 x 34 in. double acting wing lift hydraulic, Replaces 810688C91 and 810662C91, Refer to cyl-1 for components

2шт.

1272883C1

KIT

o-ring and seal service

1шт.

811962C1

PIN

cylinder rod mounting

2шт.

810751C1

PIN

cylinder base mounting

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

8шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

M73125

SPACER,1" Pipe x 3/8"

1 x .375 std pipe

4шт.
