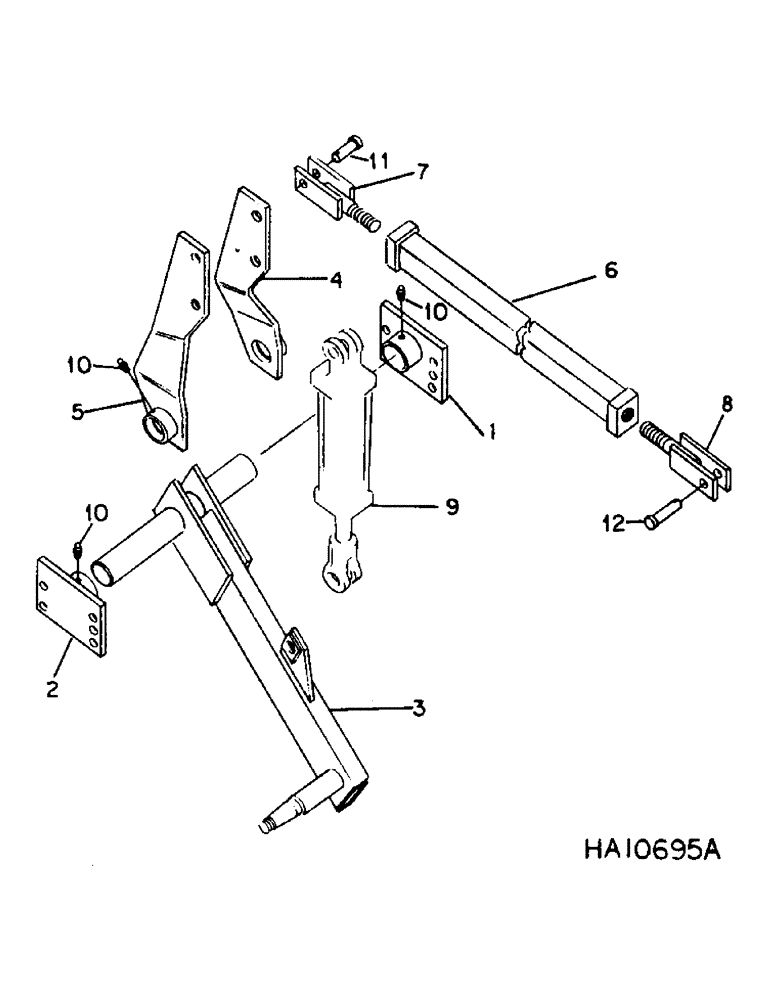

Запчасти Case IH 5500 (G-26) - SECONDARY WING DEPTH CONTROL ROCKSHAFT AND AXLE, WING TYPE, 45 FOOT DOUBLE FOLD

1

813638C1

SUPPORT

ASSY, second wing axle LH, 25 in. regular clearance

2шт.

1

813635C1

SUPPORT

ASSY, second wing axle LH, 32 in. high clearance

2шт.

2

813639C1

SUPPORT

ASSY, second wing axle RH, 25 in. regular clearance

2шт.

2

813636C1

SUPPORT

ASSY, second wing axle RH, 32 in. high clearance

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

3

810410C91

AXLE

ASSY, second wing LH, 25 in. regular clearance

2шт.

3

812543C91

HUB ASSY.

AXLE ASSY, second wing LH, 32 in. high clearance

2шт.

3

810411C91

AXLE

ASSY, second wing RH, 25 in. regular clearance

2шт.

3

812544C91

HUB ASSY.

AXLE ASSY, second wing RH, 32 in. high clearance, Includes 1-369857R1, washer, 1-427640 nut & 1-137204 pin

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

special, 1 per axle

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5, 1 per axle

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), , 1 per axle 1/8" x 1 1/2"

1шт.

4

813710C1

SUPPORT

ASSY, wing rockshaft cylinder LH, 25 in. regular clearance

2шт.

4

813708C1

SUPPORT

ASSY, wing rockshaft cylinder LH, 32 in. high clearance

2шт.

5

813711C1

SUPPORT

ASSY, wing rockshaft cylinder RH, 25 in. regular clearance

2шт.

5

813709C1

SUPPORT

ASSY, wing rockshaft cylinder RH, 32 in. high clearance

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 znd type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

812370C1

ROD

ASSY, cylinder support truss, 25 in. regular clearance

2шт.

6

812369C1

ROD

ASSY, cylinder support truss, 32 in. high clearance

2шт.

7

811975C1

CLEVIS

ASSY, truss rod LH

2шт.

8

811976C1

CLEVIS

ASSY, truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

9

1282328C92

CYLINDER ASSY.

CYLINDER ASSY, 3.75 x 8 in. double acting hydraulic, depth control slave, Replaces 145428C93, 810661C91 and 813528C91, Refer to cyl-1 for components

2шт.

9

87423766R

REMAN-HYD CYLINDER

3.75 x 8 in.

2шт.

9

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

80115C2

SEAL KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 in. std-hd-dld special

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

11

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

22457R1

HEADED PIN,1" x 4"

PIN, 1/4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.
