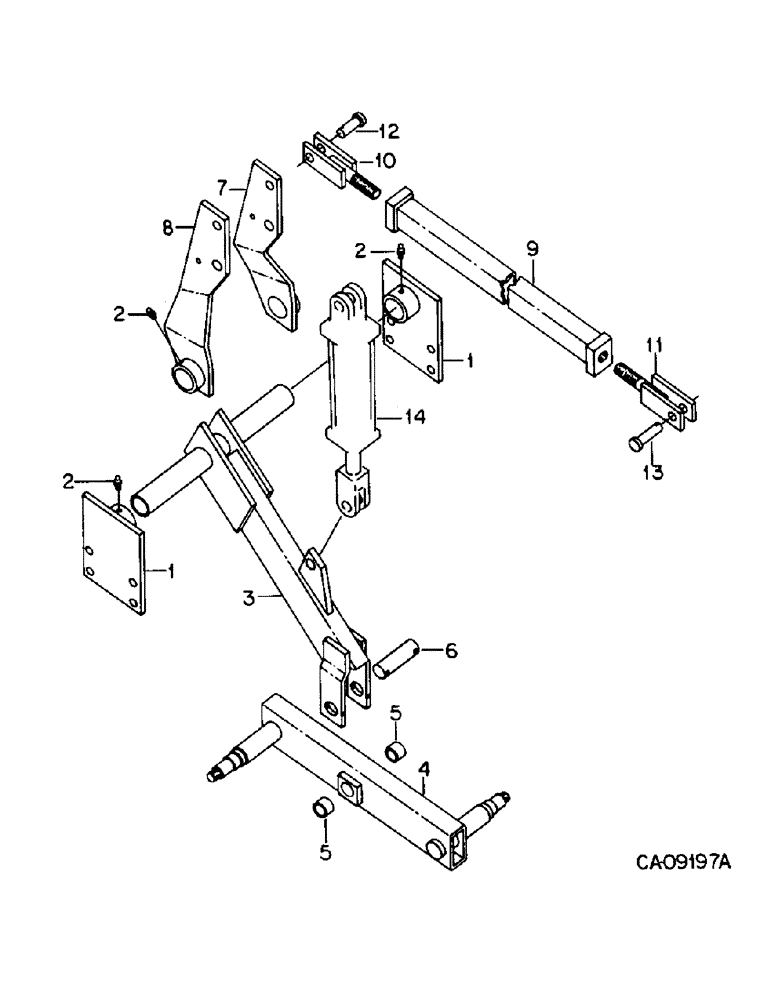

Запчасти Case IH 5500 (G-24) - WING FRAME DEPTH CONTROL ROCKSHAFT AND AXLE, WING TYPE, MACHINES WITH AXLE PIVOT THROUGH AXLE TUBE

1

813665C1

SUPPORT

ASSY, wing frame rockshaft

4шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 znd type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

3

1284048C1

SHAFT ASSY.

ROCKSHAFT ASSY, 25 in. regular clearance

2шт.

3

1284049C1

ROCKSHAFT

ASSY, 32 in. high clearance

2шт.

4

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle, Includes two bushings, 89230C1, two nuts, 70120D, two pins, 103388 and two washers, 619373R1

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex, jam

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

5

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

pivot

4шт.

6

1279363C2

PIN,50.8mm OD x 165mm L

pivot

2шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

4шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

4шт.

7

813710C1

SUPPORT

ASSY, wing rockshaft cylinder LH, 25 in. regular clearance

2шт.

7

813708C1

SUPPORT

TUBE ASSY, wing rockshaft cylinder LH, 32 in. high clearance

2шт.

8

813711C1

SUPPORT

ASSY, wing rockshaft cylinder RH, 25 in. regular clearance

2шт.

8

813709C1

SUPPORT

ASSY, wing rockshaft cylinder RH, 32 in. high clearance

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 znd type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

811981C1

ROD

ASSY, cylinder support truss, 25 in. regular clearance

2шт.

9

812561C1

ROD

ASSY, cylinder support truss, 32 in. high clearance

2шт.

10

811975C1

CLEVIS

ASSY, truss rod LH

2шт.

11

811976C1

CLEVIS

ASSY, truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

12

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

13

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

1282328C92

CYLINDER ASSY.

CYLINDER ASSY, 3.75 x 8 in. double acting hydraulic, depth control slave, Replaces 813528C91, Refer to cyl-1 for components

2шт.

14

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSY, 3.75 x 8 in. double acting hydraulic, depth control slave

2шт.

14

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

80115C2

SEAL KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 in. std-hd-dld special

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
