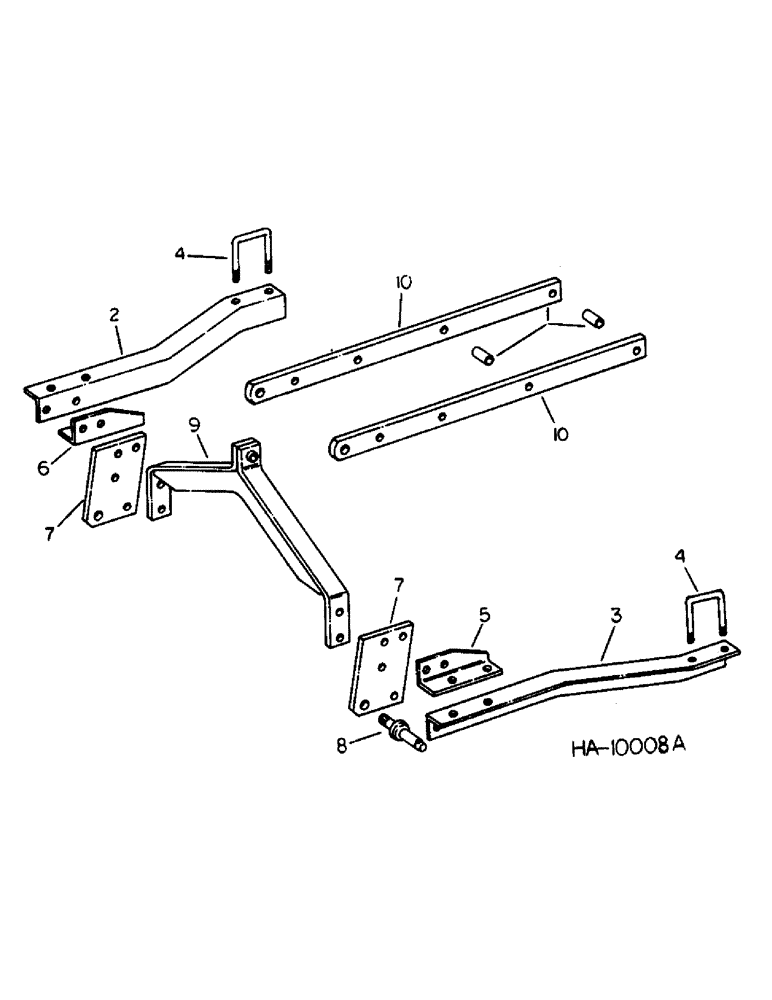

Запчасти Case IH 5500 (B-05) - THREE POINT HITCH, DIRECT MOUNTED, TWO RANK MODELS

1

608460R1

SPACER

hitch connecting bar

2шт.

2

608452R2

ANGLE

main frame cross LH

1шт.

3

608453R2

ANGLE

main frame cross RH

1шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

cross angle clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

597799R1

ANGLE

hitch anchor LH

1шт.

6

597800R1

ANGLE

hitch anchor RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

7

597798R1

BAR

hitch angle support

2шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 type 8

4шт.

22049R1

NUT,3/4"-10, G8

3/4 type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

8

472790R2

STUD

PIN, hitch block connecting

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8 NF type 5

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

9

608457R91

TRAILER HITCH

HITCH ASSY

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

2шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 x 2-3/4 type 8

2шт.

22049R1

NUT,3/4"-10, G8

3/4 type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

810222C1

BAR

hitch connecting

2шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.
