Запчасти Case IH 184 (A-46) - UNIVERSAL MARKER UNIT, DISK-TYPE, OPEN BEARING

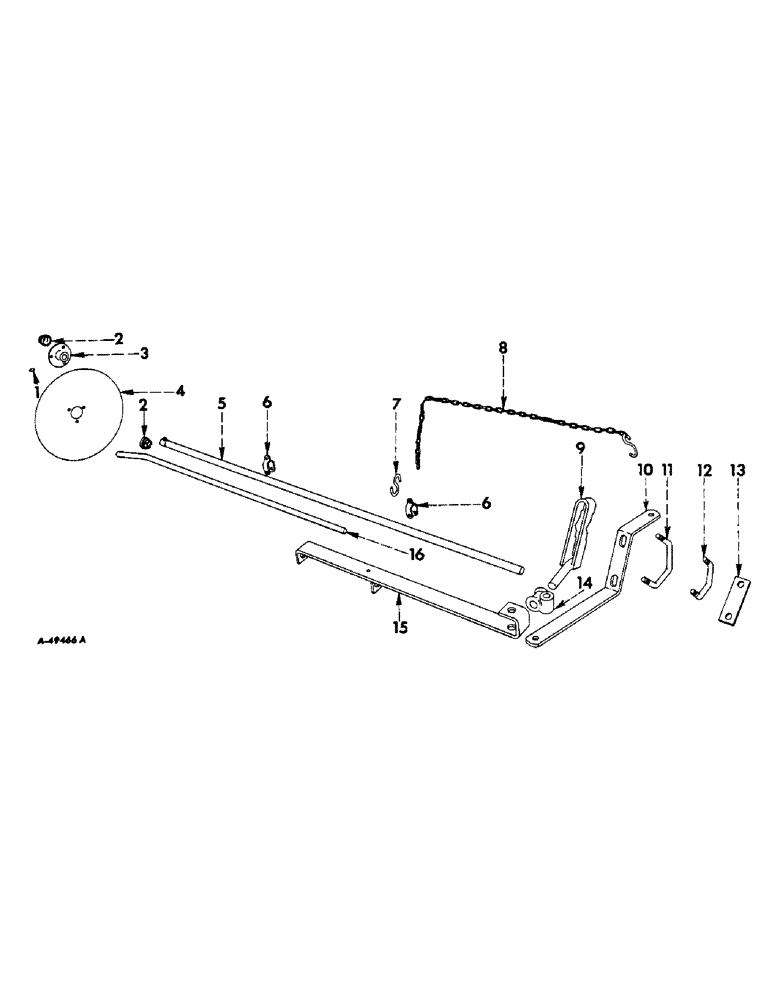

Схема запчастей Case IH 184 - (A-46) - UNIVERSAL MARKER UNIT, DISK-TYPE, OPEN BEARING
8
4
6
10
1
5
14
16
2
15
9
7
6
13
3
2
12
11

Артикул

Название

Примечание

Количество

1

110161

FITTING, 3/16 drive type straight lub.

1шт.

2

3786

BEARING WASHER

WASHER, hub

1шт.

3

PO1752A

HUB, disk

1шт.

RIVET, 5/16 x 7/8 rd-hd

3шт.

4

S3946

DISK, 14 in.

1шт.

4

PO16198

DISK W/HUB

1шт.

5

525015R91

PIPE

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

6

4766

TUBE

EYE, rope

1шт.

BOLT W/NUT, 3/8 x 1-3/4 crg

1шт.

7

520841R1

HOOK, lift chain

2шт.

8

524723R91

CHAIN, left, 48 links

1шт.

8

527104R91

CHAIN, pull, 75 links

1шт.

9

525017R91

BRACKET, support

1шт.

PIN, 1/4 x 1-1/2 self-opening cotter

2шт.

10

525012R2

BRACKET, marker pull

1шт.

11

(Not used in this application)

1шт.

12

(Not used in this application)

1шт.

13

(Not used in this application)

1шт.

14

524622R1

BLOCK, pivot

1шт.

CP15696

PIN, 7/8 x 3-1/4 dld-std-hd

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

15

525016R91

ARM, adjusting

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

16

525007R1

AXLE, disk

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.

Выбрано товаров: 26
