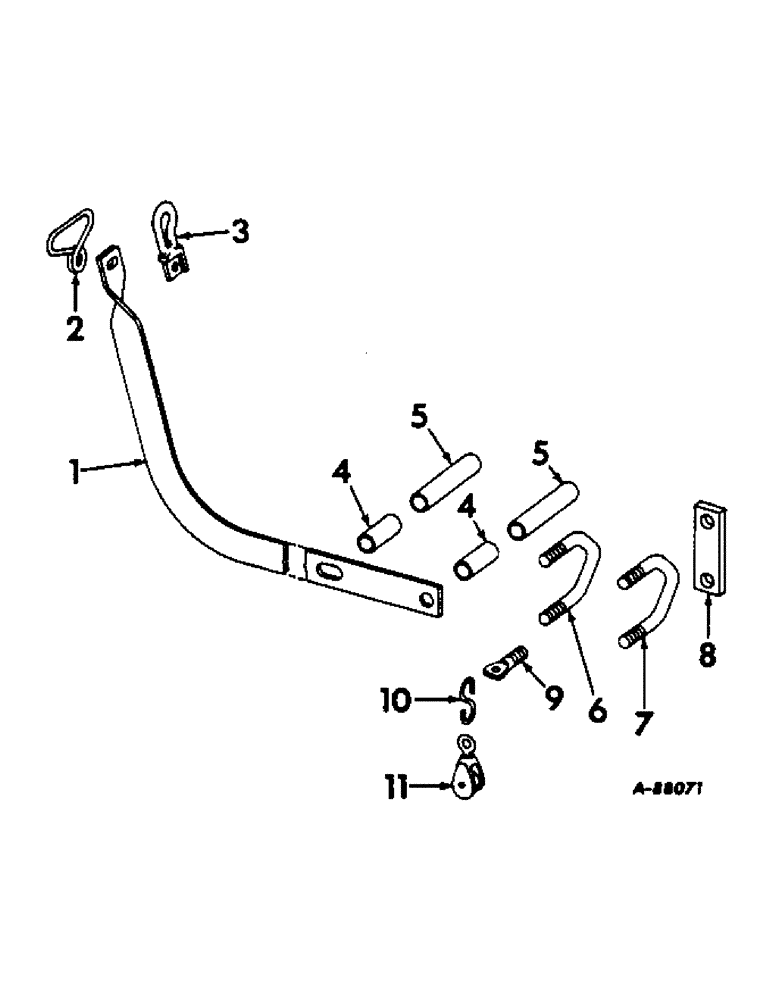

Запчасти Case IH 184 (A-45) - UNIVERSAL MARKER ADAPTING UNIT, USED WITH 268, 468, 465A CULTIVATORS & F-656 TRACTOR

1

525021R2

ARM, rope hanger

2шт.

17476R1

BOLT, 3/4 x 1-1/2 hex-hd mach

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

2

PO15110A

HANDLE, rope

2шт.

3

524962R1

GUIDE, rope

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

652415R1

SPACER

4шт.

17771R1

BOLT

3/4-10 x 4-1/2 hex-hd mach

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

481983R1

SPACER, used w/F-656 tractor only

4шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4 x 7-1/2 hex-hd cap

4шт.

6

477105R1

U-BOLT, for 1-3/4, 2, 2-1/4 and 2-1/2 tool bars

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

525020R11

UPBOLT W/NUTS, for 3-1/4 tool bar

1шт.

NUT, 5/8

2шт.

8

525024R1

CLIP, marker support

2шт.

17918R1

BOLT,Hex, 5/8" - 11 x 6 3/4", Gr 2

5/8 x 6-3/4 hex-hd mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

4шт.

17475R1

BOLT, 5/8 x 1-1/2 hex-hd mach, rope, Serial Range: bracket-tractor

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Rope bracket to tractor 5/8"

4шт.

9

525019R1

STUD, pulley

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

10

520841R1

HOOK, for pulley marker and pulley stud

4шт.

11

514938R91

PULLEY, 1-1/2 swivel type no. 73

2шт.
