Запчасти Case IH 184 (A-40) - PEANUT PLANTING EQUIPMENT, 1966 TO 1967, ONE PER ROW

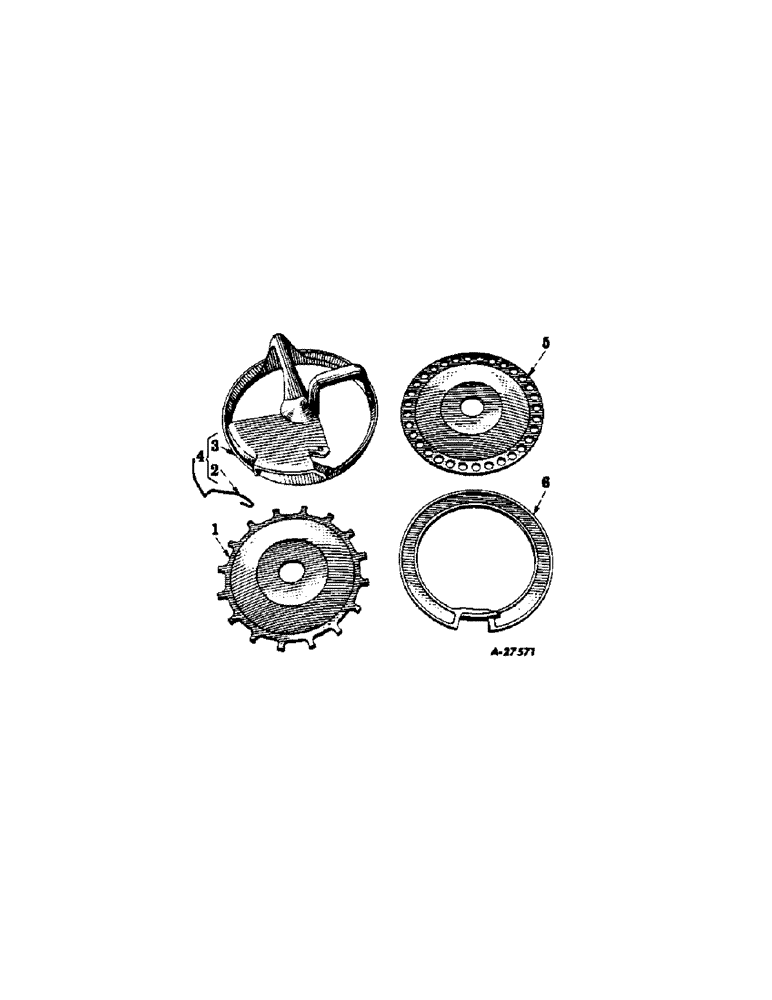

Схема запчастей Case IH 184 - (A-40) - PEANUT PLANTING EQUIPMENT, 1966 TO 1967, ONE PER ROW
6
5
1
4
3

Артикул

Название

Примечание

Количество

1

621731R2

PLATE, seed, 16 cells, for peanuts in shell

1шт.

2

621734R2

SPRING, cut-off

1шт.

NUT, 1/4 sq.

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 slt-rd-hd mach

1шт.

WASHER, 9/32 x 5/8 x 18 ga

1шт.

3

BOTTOM, hopper, order 622187R91

1шт.

4

622187R92

BOTTOM W/CUT-OFF SPRING, hopper

1шт.

5

621732R2

PLATE, see, 32 cells, for shelled peanuts

1шт.

6

621733R2

RING, filler, used with 621732R2 seed plate

1шт.
