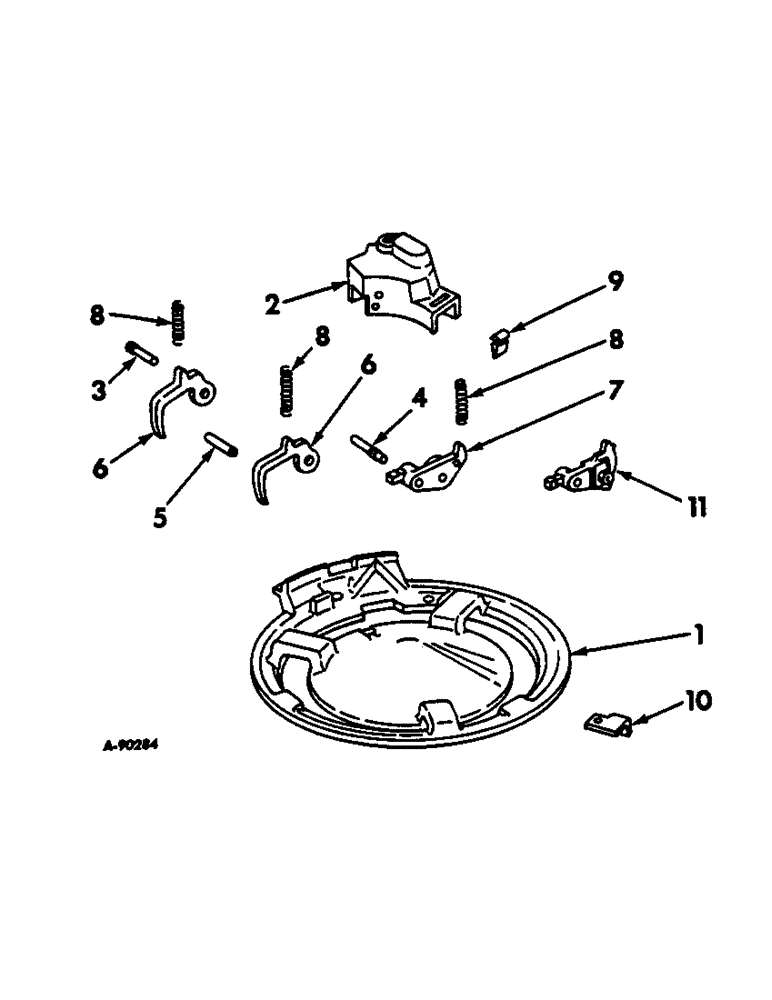

Запчасти Case IH 184 (A-38) - CORN PLANTING EQUIPMENT, FOR TRANSLUCENT FIBERGLASS HOPPER

1

488814R11

BOTTOM ASSY, combination hopper corn

1шт.

2

484871R91

SERVICE KIT

corn double pawl

1шт.

2

484884R91

COVER

ASSY, beet double pawl

1шт.

180697

SCREW, 5/16-24 x 2-1/8 C-Z hex-hd cap

1шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

3

484883R1

PIN

3/16 x 1 knurled hd, cutoff pawl pivot

1шт.

4

484882R1

PIN

3/16 x 1-1/2 knurled hd, knocker arm pivot

1шт.

5

20479R1

PIN, 3/16 x 1-1/4 C-Z champered str, cutoff pawl stop

1шт.

6

484875R1

PAWL

corn cutoff

2шт.

6

484874R1

PAWL

beet cutoff

2шт.

7

484885R11

ARM

assy, corn roller knocker

1шт.

7

484872R11

ARM

assy, beet roller knocker

1шт.

488808R1

SCREW

10 x 1/2 C-Z slt-pan-hd tap

1шт.

NLS

NO LONGER SERVICED

3/16 x 7/16 x .038 C-Z

1шт.

8

484881R1

SPRING

cutoff pawl and knocker

3шт.

9

484879R1

DOOR

GATE, double pawl cover

1шт.

10

488817R1

ANGLE, filler ring retainer

1шт.

18877R1

BOLT

1/4-20 x 1-1/4 C-Z sq-hd mach

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

11

484878R11

ARM

ASSY, small seed knocker

1шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

8-32 x 7/16 C-Z slt-pan-hd mach

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

120622

NUT,#8-32

1шт.

PLATE, seed, refer to seed plate section

1шт.

RING, filler, refer to seed plate section

1шт.
