Запчасти Case IH 184 (A-31) - MARKER EXTENSION BRACKET, PARTS FOR USE WITH MARKER WHEN USING 268 & 468 CULTIVATORS

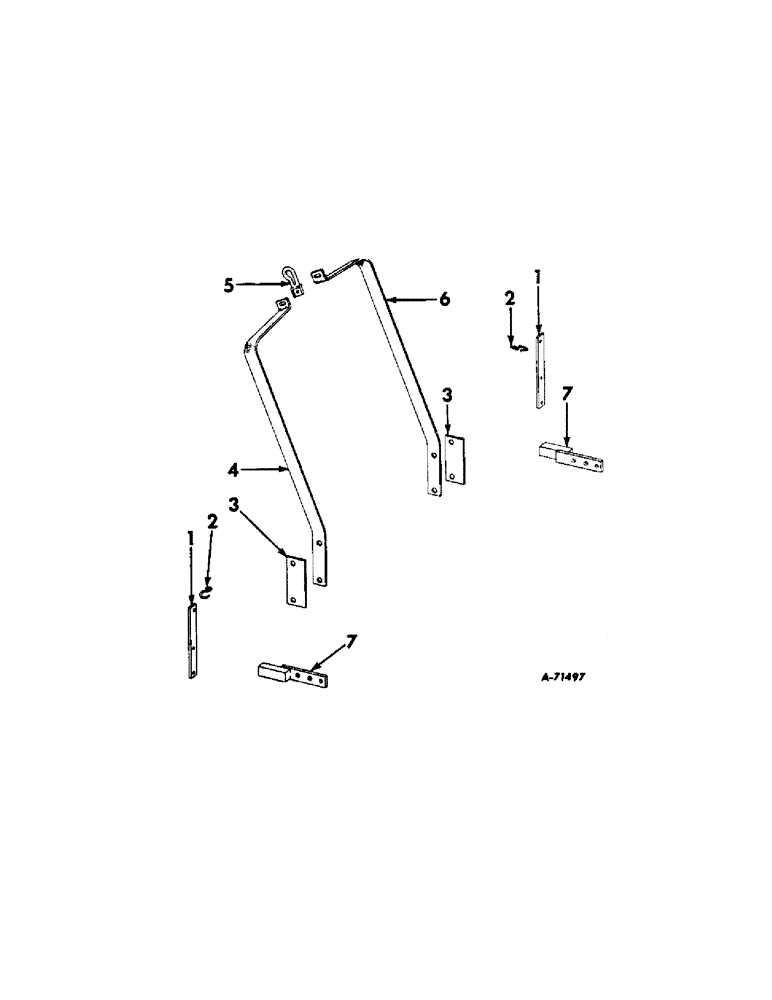

Схема запчастей Case IH 184 - (A-31) - MARKER EXTENSION BRACKET, PARTS FOR USE WITH MARKER WHEN USING 268 & 468 CULTIVATORS
6
5
3
3
4
1
2
7
2
7
1

Артикул

Название

Примечание

Количество

1

524968R1

EXTENSION, lift plate, for two-row cultivator

2шт.

BOLT W/NUT, 3/8 x 1 mach

4шт.

WASHER, 3/8 lock

4шт.

2

PO12729

HOOK

S HOOK, in lift plate extension

2шт.

3

469245R1

PLATE, spacer, for use with fertilizer unit

2шт.

SCREW, 3/4 x 3-1/2 cap

4шт.

4

469247R1

BRACKET, marker RH

1шт.

5

524962R1

GUIDE, rope

1шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

WASHER, 3/8 lock

1шт.

6

469246R1

BRACKET, marker LH

1шт.

7

469151R11

BRACKET, extension

2шт.

NUT, 1/2

4шт.

SCREW, 1/2 x 3 cap

4шт.

WASHER, 1/2 lock

4шт.

WASHER, 17/32 x 1-1/4 x 16 ga

2шт.

Выбрано товаров: 16
