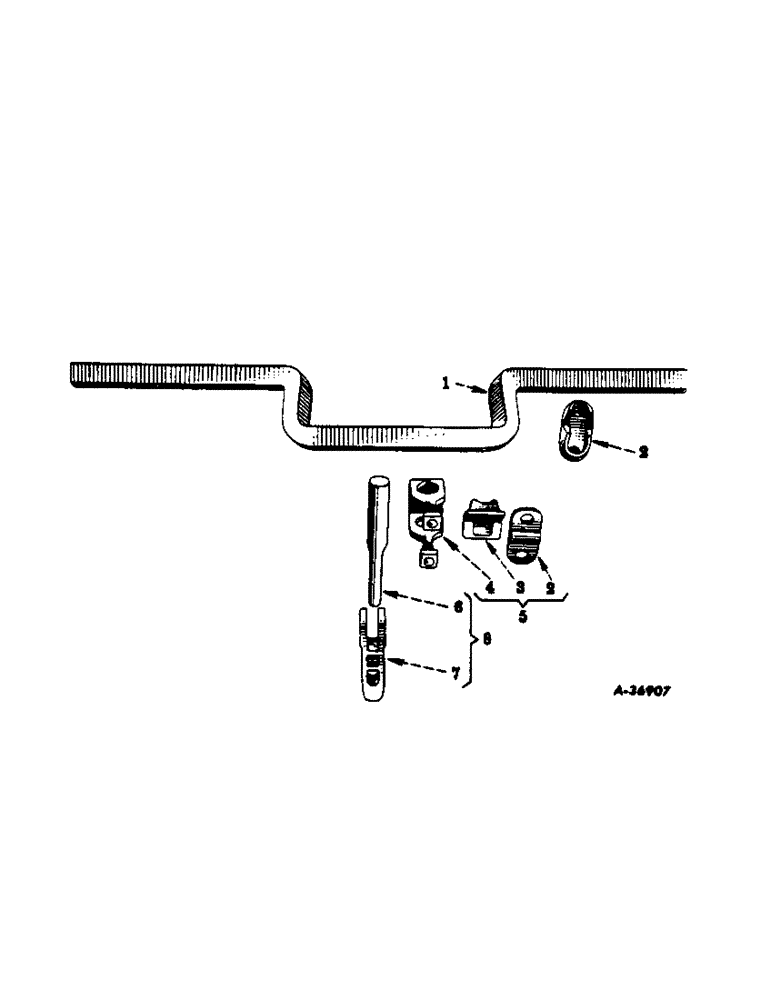

Запчасти Case IH 184 (A-25[A]) - FURROWING ATTACHMENT

1

512624R2

ROD

TOOL BAR, 1-1/4 sq

1шт.

2

28256BA

CLAMP, tool bar

1шт.

BOLT W/NUT, 5/8 x 4 sq-hd mach

2шт.

3

1875B

CLAMP

BLOCK

1шт.

4

29600BAX

U-BOLT

W/NUTS

1шт.

NUT, 5/8

2шт.

5

29601BA

CLAMP

ASSEMBLY, for 1-1/8 or 1-1/4 in. round standard

1шт.

6

516507R1

STANDARD, 1/4 in. dia 13-1/4 in. long straight

1шт.

7

516513R1

TRIP

BREAK-OFF, standard

1шт.

BOLT W/NUT, 1/2 x 2-1/4 crg

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/2 x 11 ga

2шт.

8

516497R91

TRIP

STANDARD ASSEMBLY, friction trip

1шт.
