Запчасти Case IH 184 (A-24) - SHOVEL FURROWER FRICTION TRIP AND COVERING SHOVEL

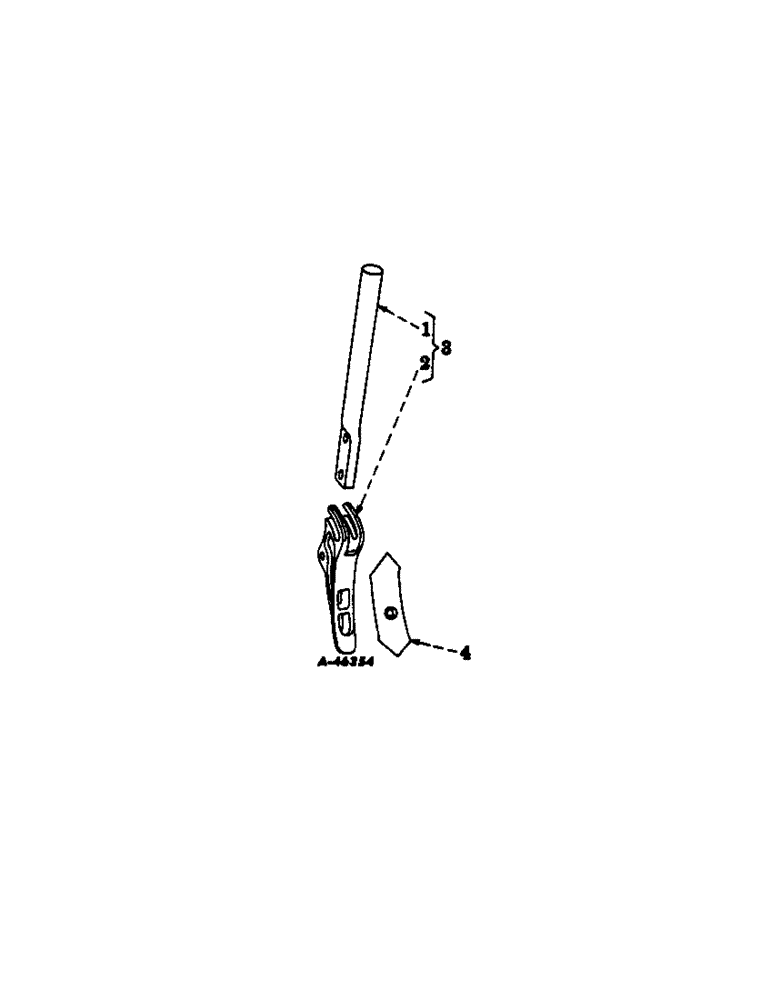

Схема запчастей Case IH 184 - (A-24) - SHOVEL FURROWER FRICTION TRIP AND COVERING SHOVEL
2
3
1
4

Артикул

Название

Примечание

Количество

1

517715R1

STANDARD, straight, 1-1/4 in. dia 16 in. long

1шт.

2

516513R1

TRIP

BREAK-OFF

1шт.

BOLT W/NUT, 1/2 x 2-1/4 crg

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/2 x 11 ga

1шт.

3

517714R91

FRICTION TRIP ASSEMBLY, straight

1шт.

4

26013B

SHOVEL

double point

1шт.

27583BX

BOLT W/NUT, 3/8 x 2-1/2 no. 3 plow

1шт.

WASHER, 13/32 x 1-1/2 x 16 ga

1шт.

Выбрано товаров: 10
