Запчасти Case IH 184 (A-22) - DISK HILLER, FOR DISK FURROWING AND BEDDING ATTACHMENTS, FOR NO. 184 PLANTER UNIT

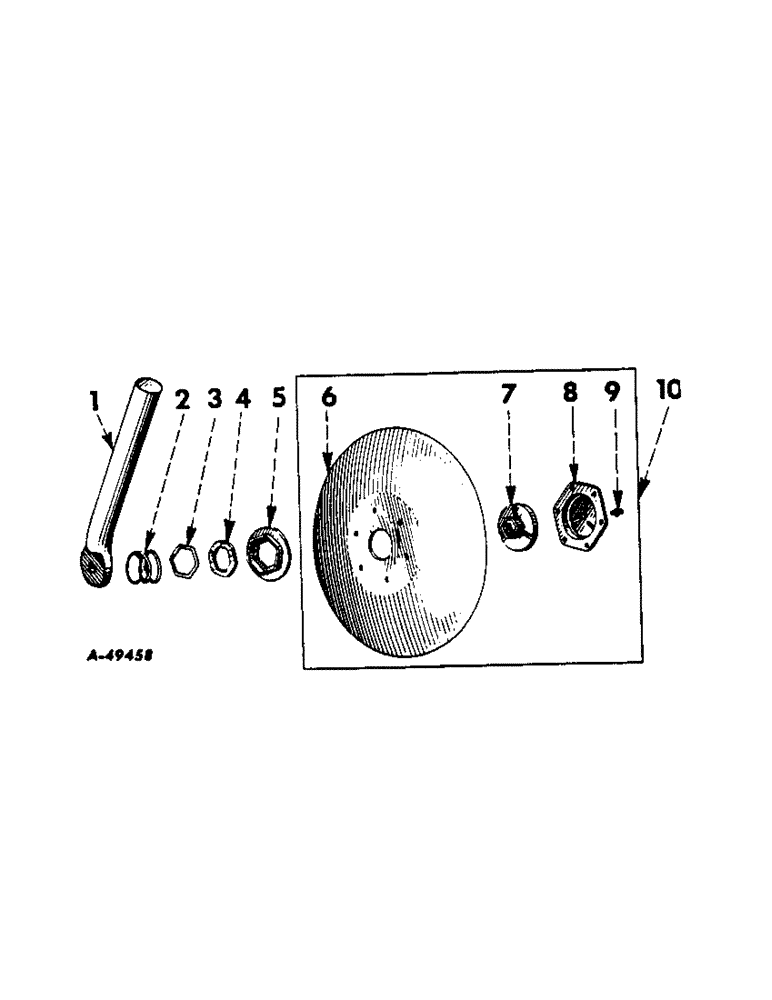

Схема запчастей Case IH 184 - (A-22) - DISK HILLER, FOR DISK FURROWING AND BEDDING ATTACHMENTS, FOR NO. 184 PLANTER UNIT
6
10
2
4
5
1
9
8
3
7

Артикул

Название

Примечание

Количество

1

512584R3

SUPPORT ASSY.

STANDARD, disk, regular

1шт.

1

467317R1

STANDARD, disk, for use with 200 cultivator

1шт.

1

523238R1

STANDARD, disk, for double tool bars

1шт.

2

516396R1

SPRING

disk bearing, 1.644 in. OD, 1 in. long, 3 coils

1шт.

3

511873R1

SHIM

WASHER, compression felt

1шт.

4

13965A

WASHER

disk bearing felt, 1-3/8 x 1-7/8 x 3/16 thick

1шт.

5

511871R1

WASHER

WASHER, dust

1шт.

6

511138R1

DISC

DISK, 13 in.

1шт.

RIVET, 1/4 x 3/4 rd-hd

1шт.

7

511869R1

BLOCK

bearing

1шт.

NUT, 1/2

1шт.

SCREW, 1/2 x 1-3/4 cap

1шт.

WASHER, 1/2 hv lock

1шт.

8

511870R1

HUB

BEARING, disk

1шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

511874R91

DISC

DISK ASSEMBLY

1шт.

Выбрано товаров: 16
