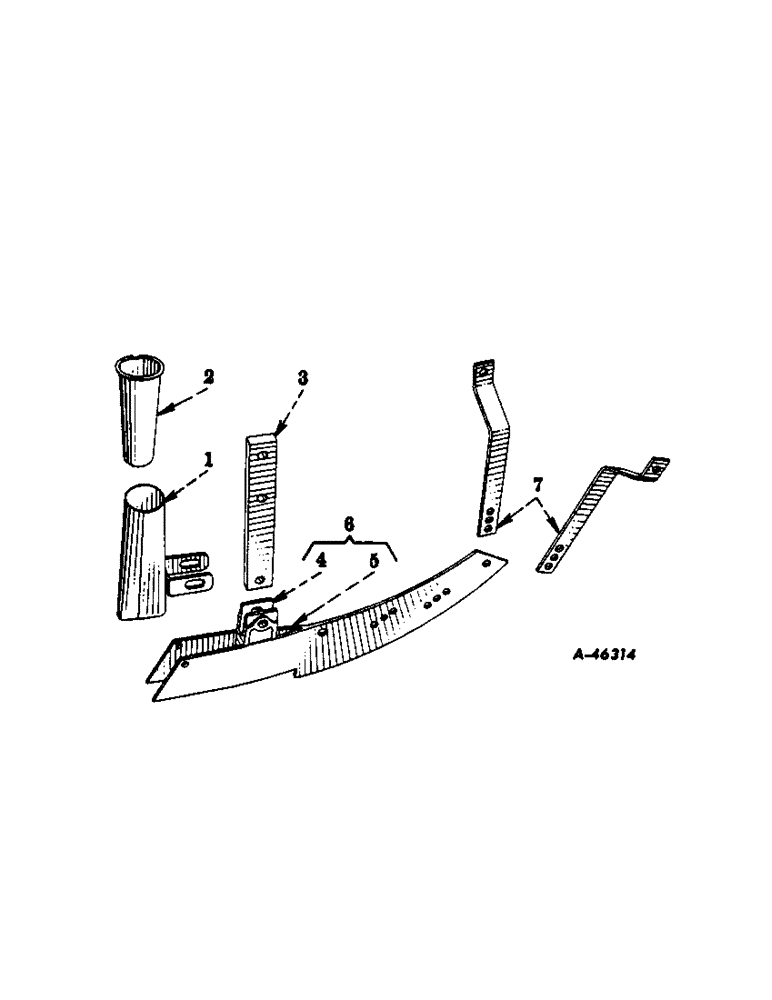

Запчасти Case IH 184 (A-21[A]) - RUNNER OPENER

1

523206R11

CHUTE (DOWNWARD)

SPOUT, seed lower

1шт.

BOLT W/NUT, 1/2 x 2-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/4 x 16 ga

1шт.

2

523203R1

TUBE

seed upper

1шт.

3

523204R2

STANDARD, runner

1шт.

4

520471R1

BLOCK, runner attaching

1шт.

5

522117R11

SHARE

RUNNER

1шт.

6

522119R91

SHOE

RUNNER W/BLOCK, riveted assembly

1шт.

RIVET, 3/8 x 1-1/8 74 deg csk-hd

1шт.

RIVET, 3/8 x 1-5/8 deg csk-hd

1шт.

7

523205R1

BRACE

runner

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 1/2 lock

1шт.
