(A-16[A]) - FRAME JOCKEY ARCH, FOR REAR MOUNTED NO. 259 CULTIVATOR WITH NO. 184 PLANTER UNIT

Запчасти Case IH 184 (A-16[A]) - FRAME JOCKEY ARCH, FOR REAR MOUNTED NO. 259 CULTIVATOR WITH NO. 184 PLANTER UNIT

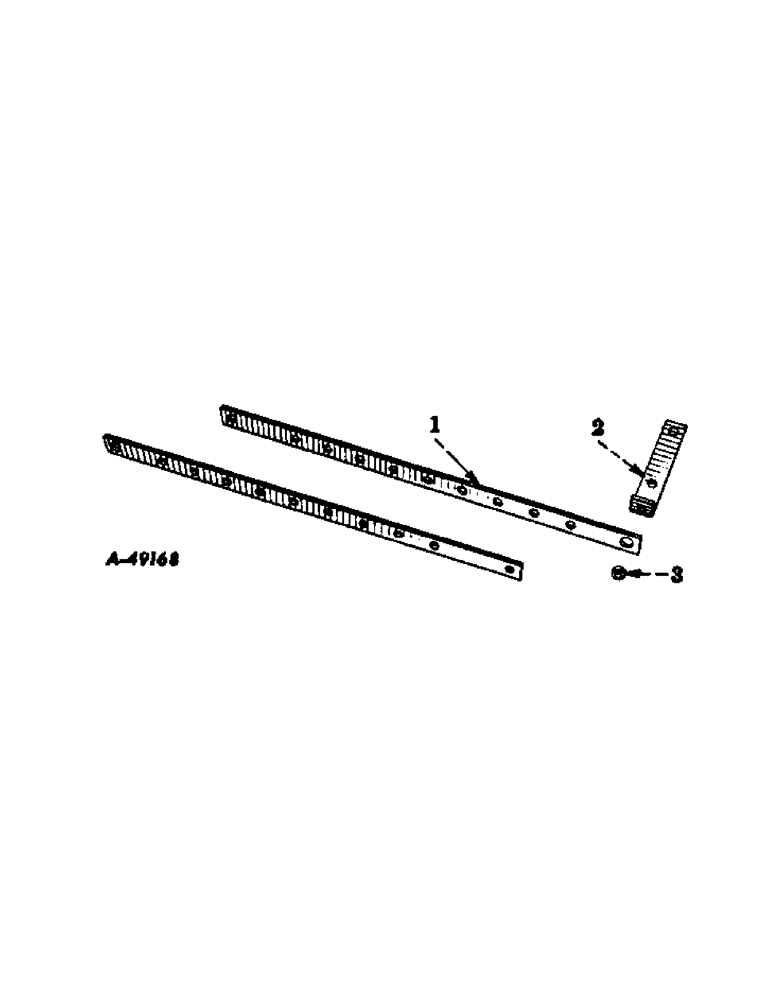

Схема запчастей Case IH 184 - (A-16[A]) - FRAME JOCKEY ARCH, FOR REAR MOUNTED NO. 259 CULTIVATOR WITH NO. 184 PLANTER UNIT
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

522167R1

BAR, jockey

1шт.

BOLT W/NUT, 7/16 x 1-1/4 crg

1шт.

BOLT W/NUT, 7/16 x 1 mach

1шт.

WASHER, 15/32 x 1-1/4 x 16 ga

1шт.

2

524512R1

BRACKET, jockey bar

1шт.

3

152858

AUGER

SPACER, jockey bar

1шт.
