Запчасти Case IH 184 (A-11) - PLANTER ATTACHING UNIT, 184 PLANTER

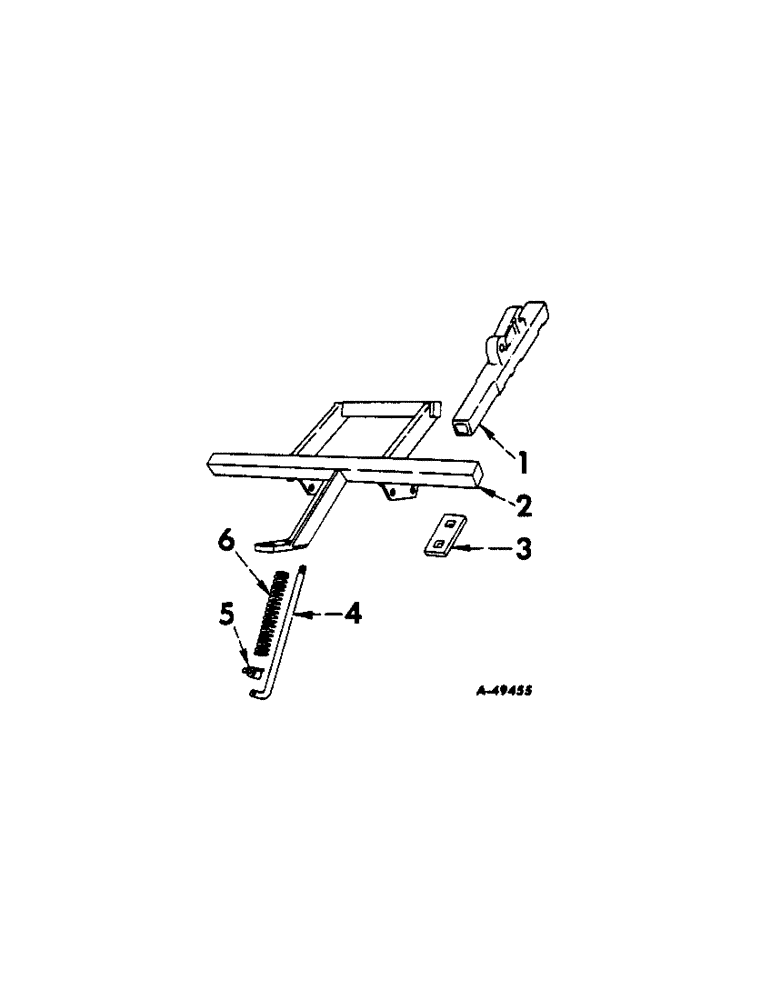

Схема запчастей Case IH 184 - (A-11) - PLANTER ATTACHING UNIT, 184 PLANTER
3
5
4
2
1
6

Артикул

Название

Примечание

Количество

1

524912R1

CASTING, tool bar attaching

1шт.

BOLT W/NUT, 5/8 x 3 mach

2шт.

WASHER, 5/8 lock

1шт.

2

524381R91

TOOL BAR, double, 1957 to 1960, order 464283R91 and 76730H

2шт.

2

464283R91

TOOL BAR, double, 1960 and since

1шт.

3

520683R1

CLIP, tool bar attaching

1шт.

4

464278R1

ROD, pressure, 1960 and since

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

4

523217R1

ROD, pressure, Serial Range: 1957-1960

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 self-opening cotter

1шт.

5

5326X

COLLAR

W/SET SCREW, pressure rod set

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

6

523267R1

SPRING

pressure rod

1шт.

Выбрано товаров: 18
