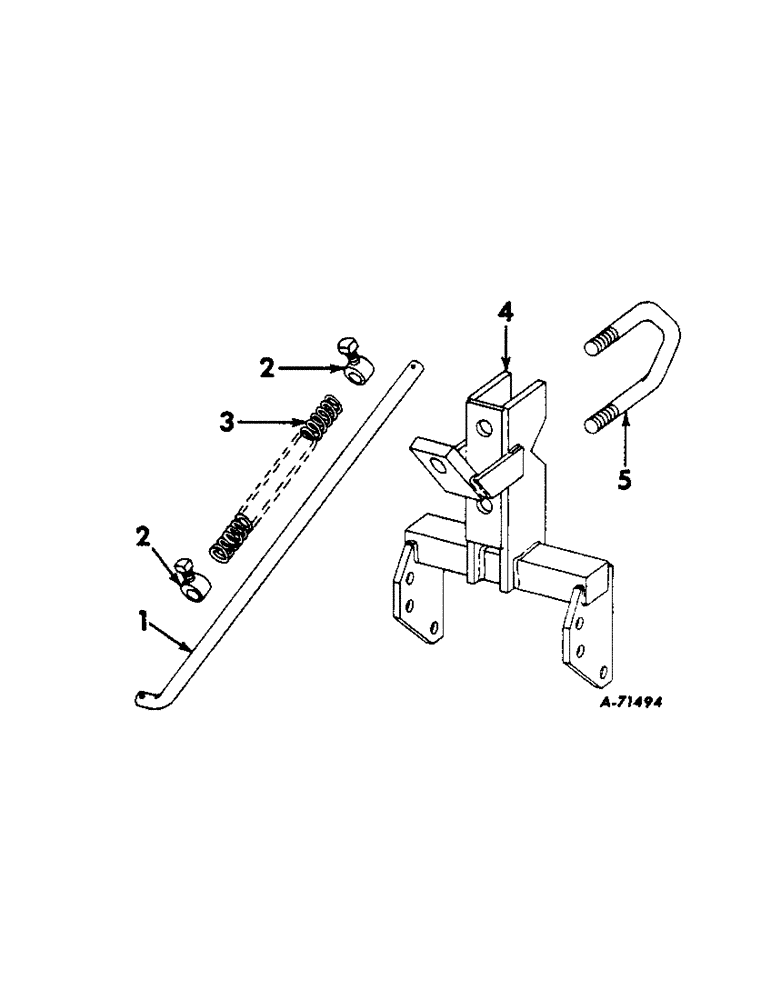

Запчасти Case IH 184 (A-11[A]) - PLANTER ATTACHING UNIT, 184 PLANTER

1

467316R1

ROD, pressure

1шт.

PIN, 3/16 x 11-1/4 self-opening cot.

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

3шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 sq-hd cup-pt set

1шт.

3

PO23

SPRING

1шт.

4

467309R91

BRACKET, attaching

1шт.

5

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT

1шт.

NUT, 3/4

2шт.
