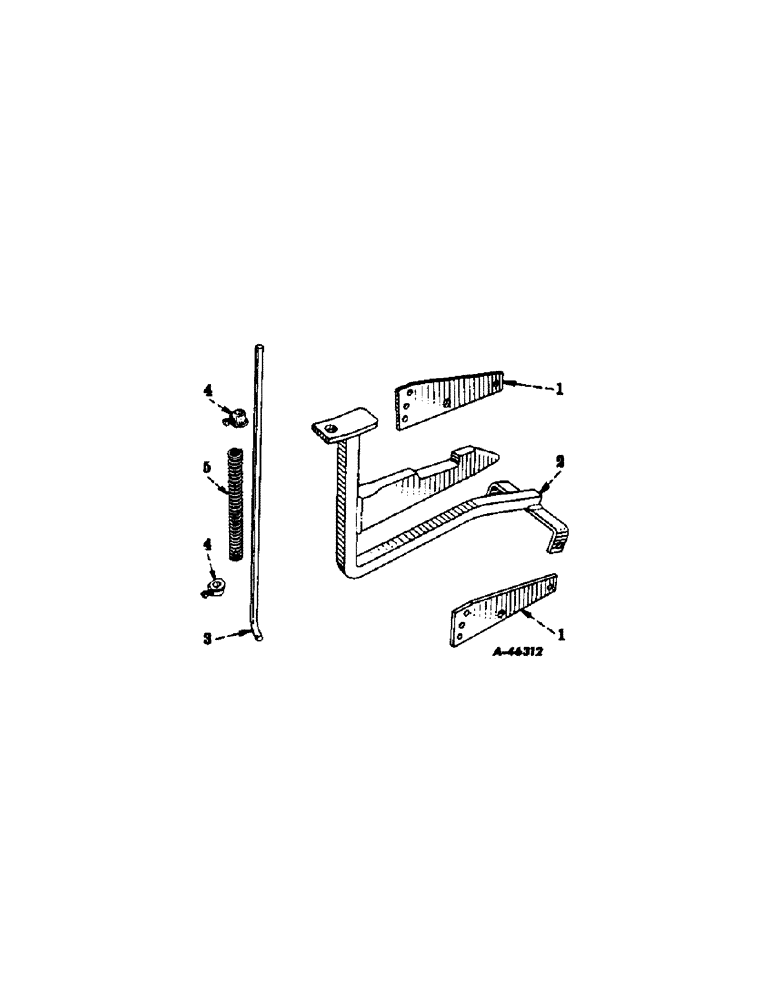

Запчасти Case IH 184 (A-09) - PLANTER ATTACHING UNIT, 184 PLANTER

1

523211R1

EXTENSION, planter frame rail

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 1/2 lock

1шт.

2

523210R92

BEAM, coupling

1шт.

3

523207R1

ROD, lift, Serial Range: 1957-1960

1шт.

PIN, 3/16 x 1 self-opening cotter

1шт.

3

464279R1

ROD, lift, 1960 and since

1шт.

PIN, 3/16 x 1-1/4 self-opening cotter

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

4

5326X

COLLAR

W/SET SCREW, Serial Range: 1957-1960

1шт.

88949

SET SCREW,Sq Hd, 5/16" - 18 x 5/8"

SCREW, 3/8 x 1/2 cup-pt sq-hd set

1шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod, 1960 and since

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

5

PO23

SPRING

lift rod pressure, 1-1/16 OD, 10 in. long, 30-1/2 coils

1шт.
