Запчасти Case IH 425 (A-06) - BALE TENSION, MANUAL

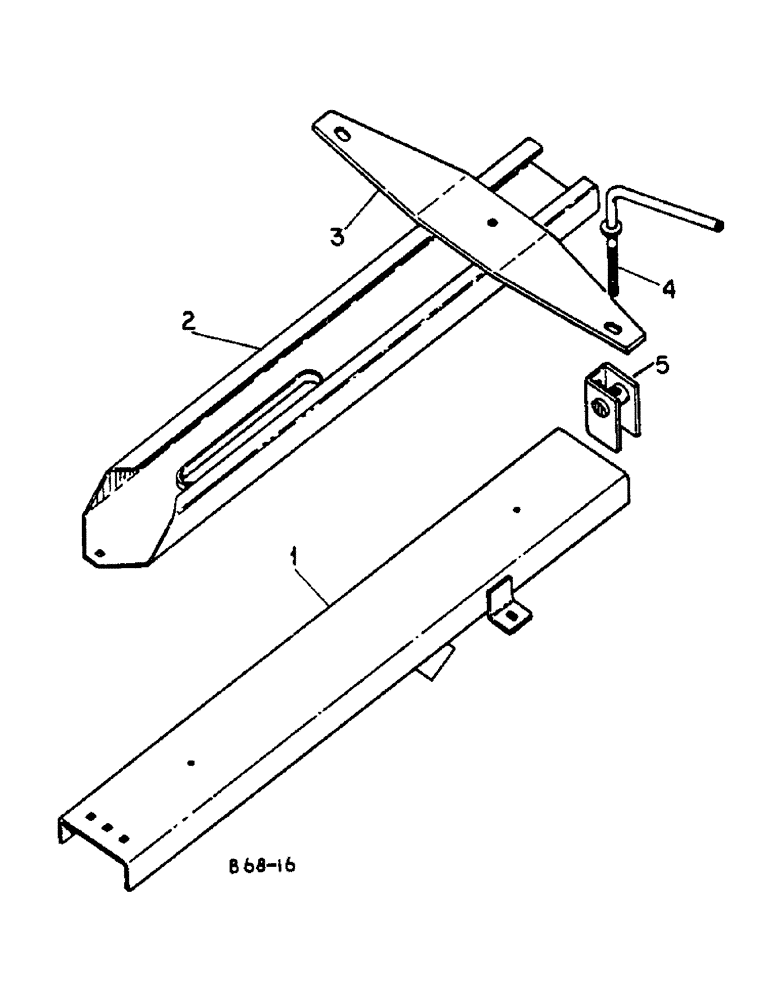

Схема запчастей Case IH 425 - (A-06) - BALE TENSION, MANUAL

Артикул

Название

Примечание

Количество

1

3102968R1

CHANNEL

ASSY, lower tension

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

2

3102972R1

CHANNEL

upper tension

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

670680R1

SPRING

tension

1шт.

18700R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2

BOLT, 7/16 x 3 crg type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

4

670681R91

SCREW

ASSY, tension

2шт.

5

671126R91

SUPPORT

ASSY, tension

2шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 crg type 1

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

2шт.

Выбрано товаров: 17
