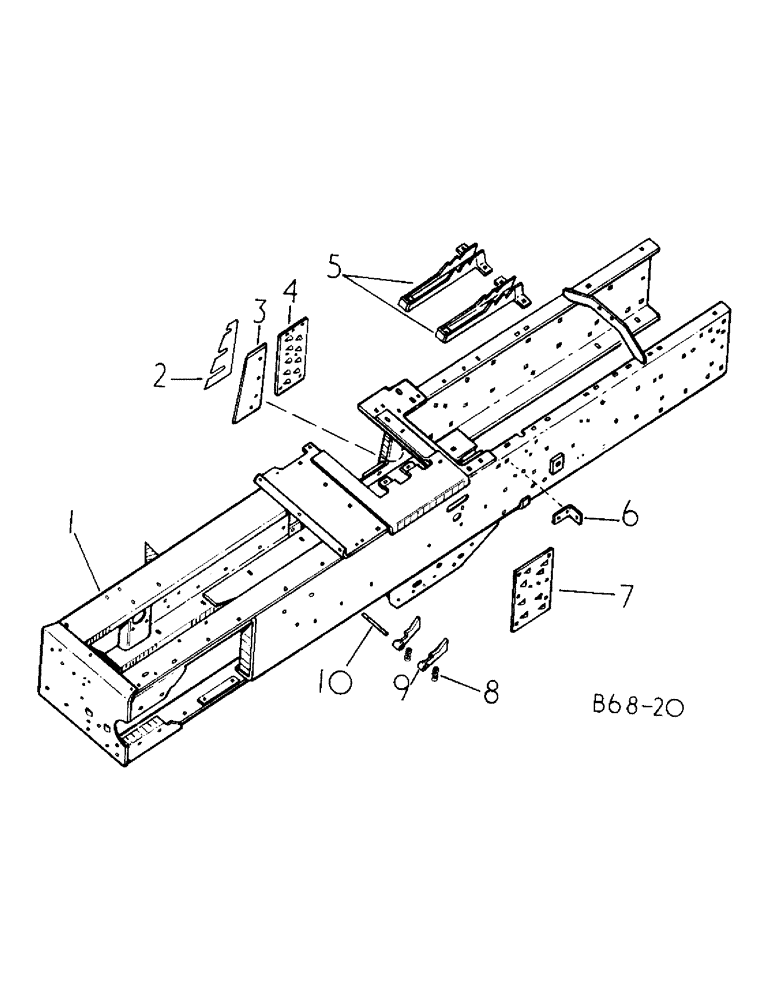

Запчасти Case IH 425 (A-05) - BALE CHAMBER

1

3102958R1

CHAMBER

ASSY, bale

1шт.

2

203016C1

SHIM

stationary knife, (or as required)

2шт.

2

203017C1

SHIM

stationary knife

1шт.

3

203021C1

KNIFE

hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

102839

EXTENSION

NUT, 5/8 pln type 5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

754922R2

PLATE

hay retainer RH, replaces 662294R3

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

5

3102133R1

NO LONGER SERVICED

BLADE ASSY, lower groover

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 plow type 1

4шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

3102964R1

SUPPORT

spring trip arm

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

754921R3

PLATE

hay retainer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1597

WASHER

.406 x .734 x .056 pln

9шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 plow type 1

1шт.

8

668869R1

SPRING

hay retainer

2шт.

9

662007R2

RETAINER

hay

2шт.

10

667685R1

PIN

hay retainer

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.
