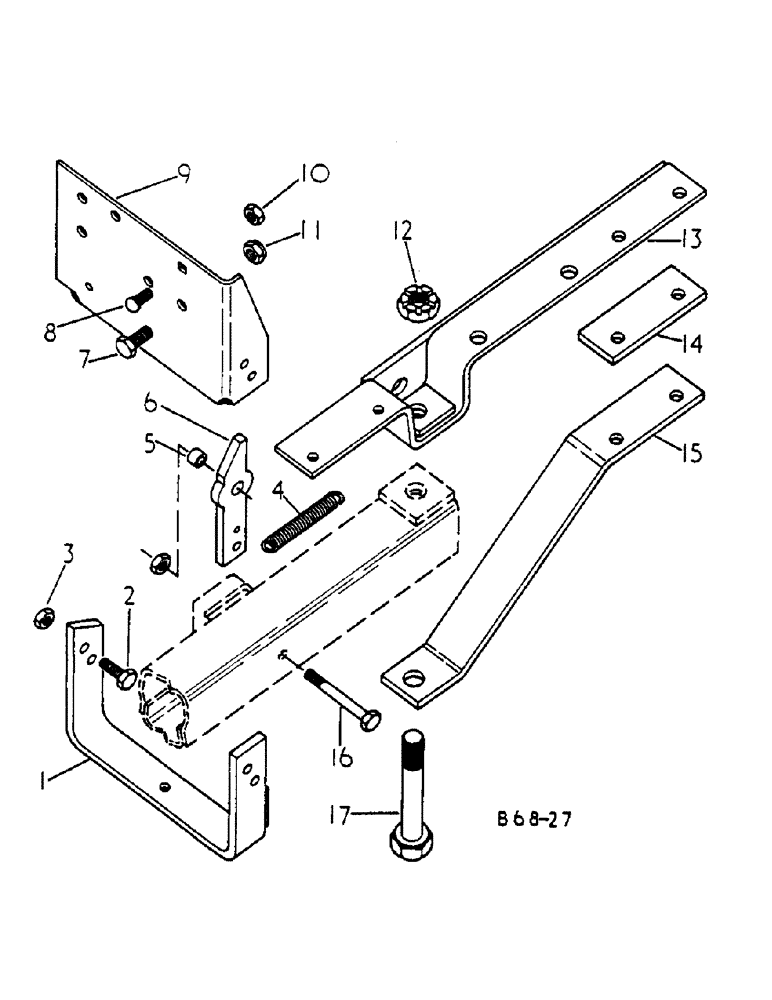

Запчасти Case IH 425 (A-04) - HITCH PIVOT ASSEMBLY

1

3103058R1

BRACKET

ASSY, hitch support

1шт.

2

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

4

165

SPRING

hitch lever

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

5

204112C1

BUSHING

PIVOT, hitch lever

1шт.

6

204111C1

LEVER

hitch

1шт.

7

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4

5шт.

366866C1

LOCK WASHER,5/8"

5/8"

5шт.

8

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

674109R2

PLATE

hitch support

1шт.

10

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 lock

1шт.

11

202708C1

NUT

5/8 lock

5шт.

12

3102164R1

NUT

1-14 UNF slt jam

1шт.

13

674110R1

PIVOT

ASSY, hitch

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

14

3103061R1

SPACER

hitch pivot assy

1шт.

15

667628R1

ANGLE

STRAP, hitch pivot assy

1шт.

2718564

BOLT, 5/8 x 2-1/2 pln type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

16

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 mach

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

17

3103060R1

BOLT,Hex, 1" - 14 x 7"

1-14 x 7 hitch anchor

1шт.

21213R1

WASHER

1.031 x 2.000 x .105

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.
