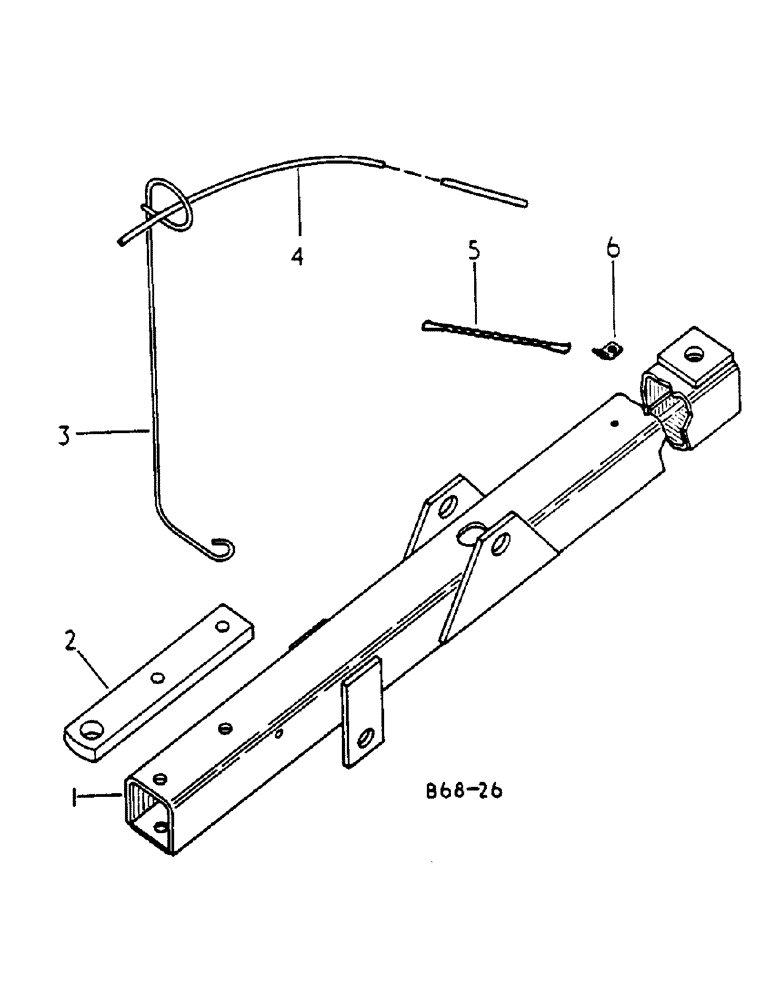

Запчасти Case IH 425 (A-03) - HITCH

1

3103053R1

HITCH ASSY

short used w/2 joint PTO shaft

1шт.

1

3103054R1

HITCH ASSY

long used w/3 joint PTO shaft shaft

1шт.

2

202956C1

STRAP

hitch

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

202708C1

NUT

5/8

2шт.

3

668037R1

SUPPORT

hitch rop, long hitch

1шт.

12258R1

WASHER

.656 x 1.250 x .090 pln

1шт.

4

204678C1

ROPE

hitch latch

1шт.

5

3102360R1

CHAIN (AG)

CHAIN, knotted link

1шт.

6

202550C1

FASTENER

chain

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

674472R1

BRACKET

PIN ASSY, hitch, short hitch

1шт.

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 std hd, long hitch

1шт.

517843R1

COTTER PIN

PIN, 3/16 cot

1шт.
