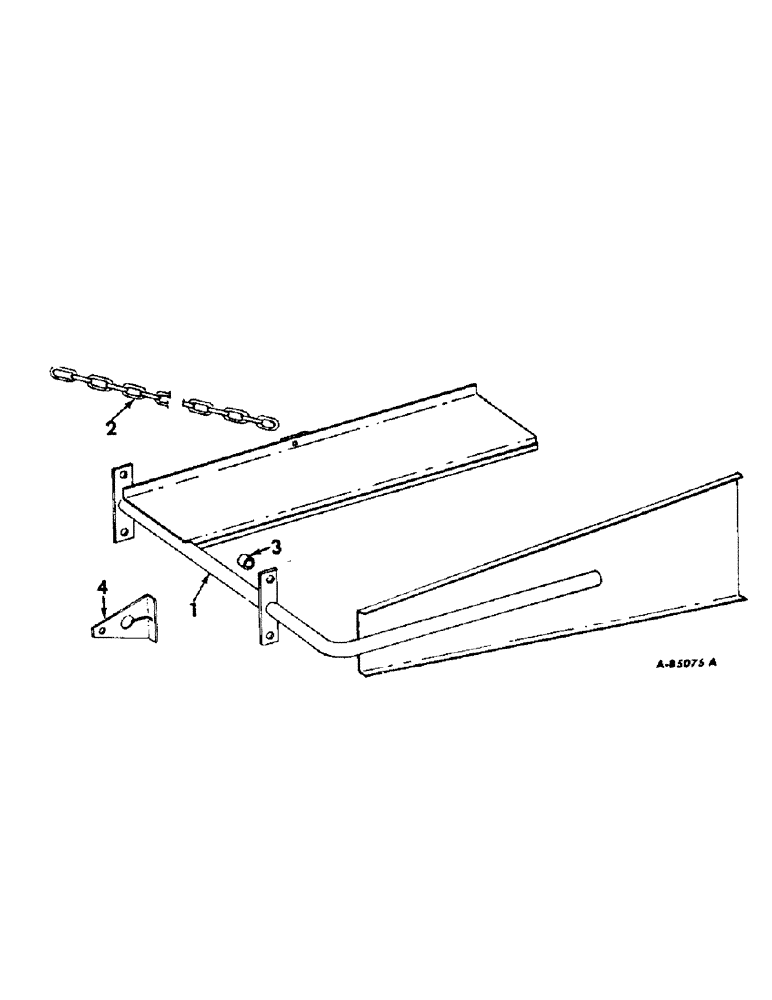

Запчасти Case IH 425 (A-52) - BALE TURNER ATTACHMENT, WHEN ORDERED

1

674032R1

VALVE BLOCK

TURNER ASSY, bale

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 crg type 1

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

21763R1

WASHER

.469 x .750 x .105

1шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.

2

495526R1

CHAIN (AG)

CHAIN, bale chamber ext hoild up

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

3

604433R1

SPACER,1/2" Pipe x 13/16"

pipe

1шт.

4

203187C1

HOLDER

chain, replaces 754484R2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.
