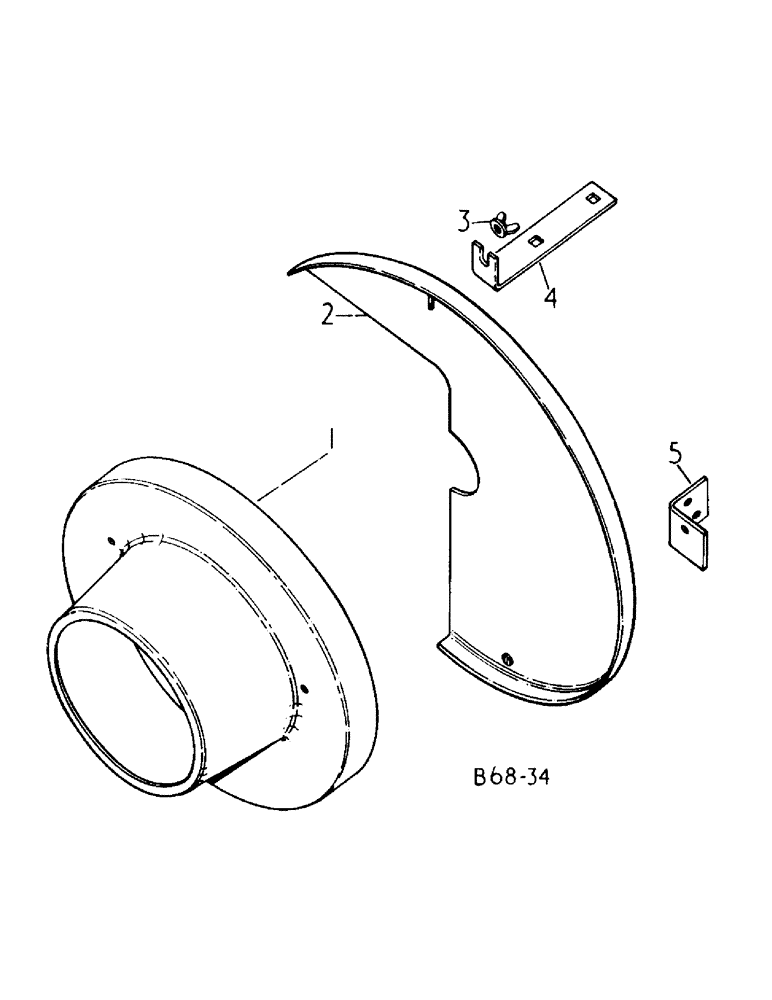

Запчасти Case IH 425 (A-49) - FLYWHEEL SHIELD

1

3103105R1

SHIELD

flywheel cone

1шт.

754899R1

SCREW,1/4" x 5/8"

1/4-28 x 5/8 slt-truss hd mach

3шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

2

208166C1

SHIELD

ASSY, flywheel rear

1шт.

3

126032

WING NUT,3/8"-16

NUT, 3/8 wing, replaces 204812C1

1шт.

4

1900090C1

SUPPORT, flywheel shield upper

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

.469 x .875 x .164

2шт.

5

208168C1

SUPPORT

flywheel shield lower

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex lock

1шт.
