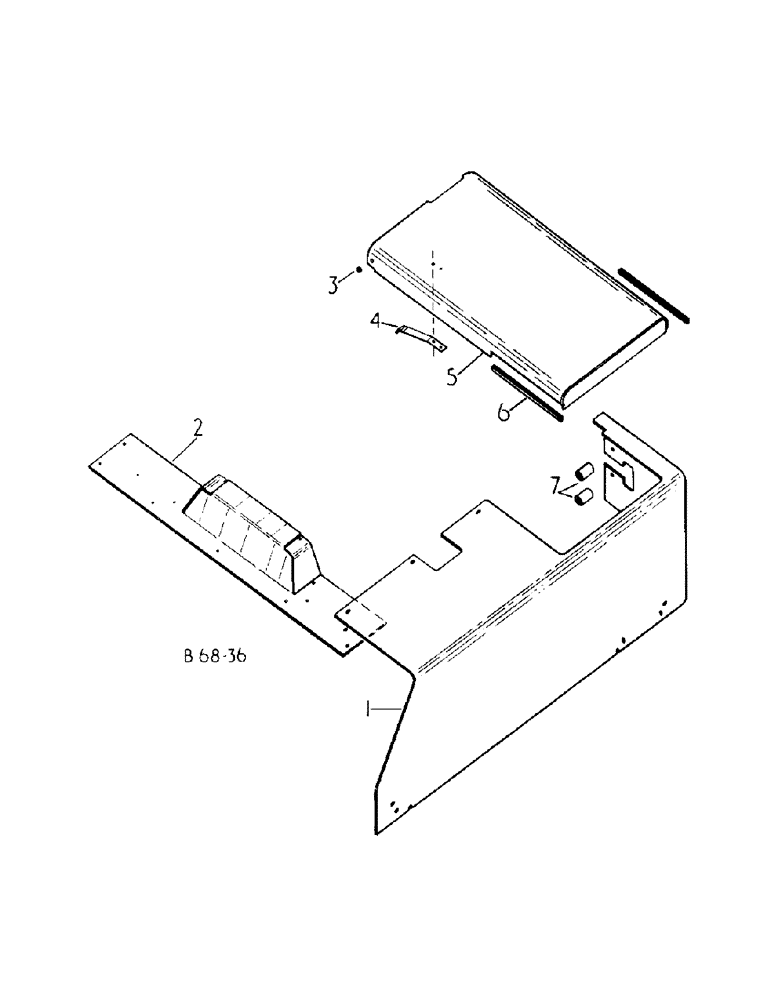

Запчасти Case IH 425 (A-48) - SPECIAL SHIELDS

1

3103101R1

SHIELD

ASSY, baler left

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

5шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

2

203089C1

SHIELD

ASSY, packer gear upper

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

6шт.

109084

NUT,1/4"-20, G5

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

3

11309N

SPACER

knotter cover pivot

2шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

4

667787R1

SPRING

knotter cover

1шт.

110638

RIVET

3/16 x 5/16 pln but/hd sol

2шт.

5

3102866R91

COVER

ASSY, knotter and drive arm

1шт.

6

3102869R1

FLANGE

SEAL, flange knotter cover

1шт.

7

3100615R1

SPACER

needle drive shield

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

.406 x .812 x .051 pln

2шт.
