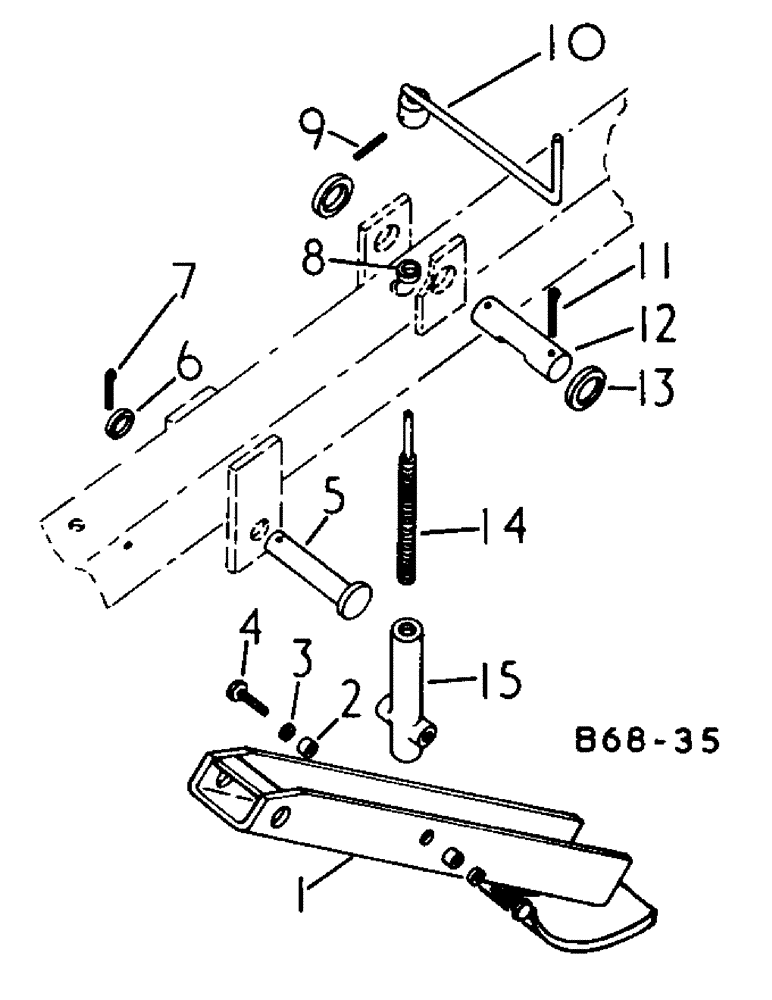

Запчасти Case IH 425 (A-47) - LIFTING JACK

1

3101739R2

CHANNEL

ASSY, jack

1шт.

2

204112C1

BUSHING

PIVTO, hitch lever

2шт.

3

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

5

1502548C1

PIN

1шт.

21877R1

WASHER

1.156 x 2.000 x .027

1шт.

6

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.0 x 0.108

1шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

8

3101746R1

WASHER

thrust

1шт.

9

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

10

3102819R1

HANDLE

ASSY, jack

1шт.

11

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

12

3101744R1

PIN

jack screw pivot

1шт.

22182R1

WASHER

1.281 x 2.000 x .033

1шт.

13

21226R1

WASHER

1.281 x 2.0 x 0.105

2шт.

14

3101745R2

SCREW

jack

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

15

3101743R2

PIVOT

jack screw

1шт.

3103936R91

KIT

PACKAGE, two handed jack handle, composed of

1шт.

3103841R1

HANDLE

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

3103843R1

KNOB

2шт.

321935C1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.
