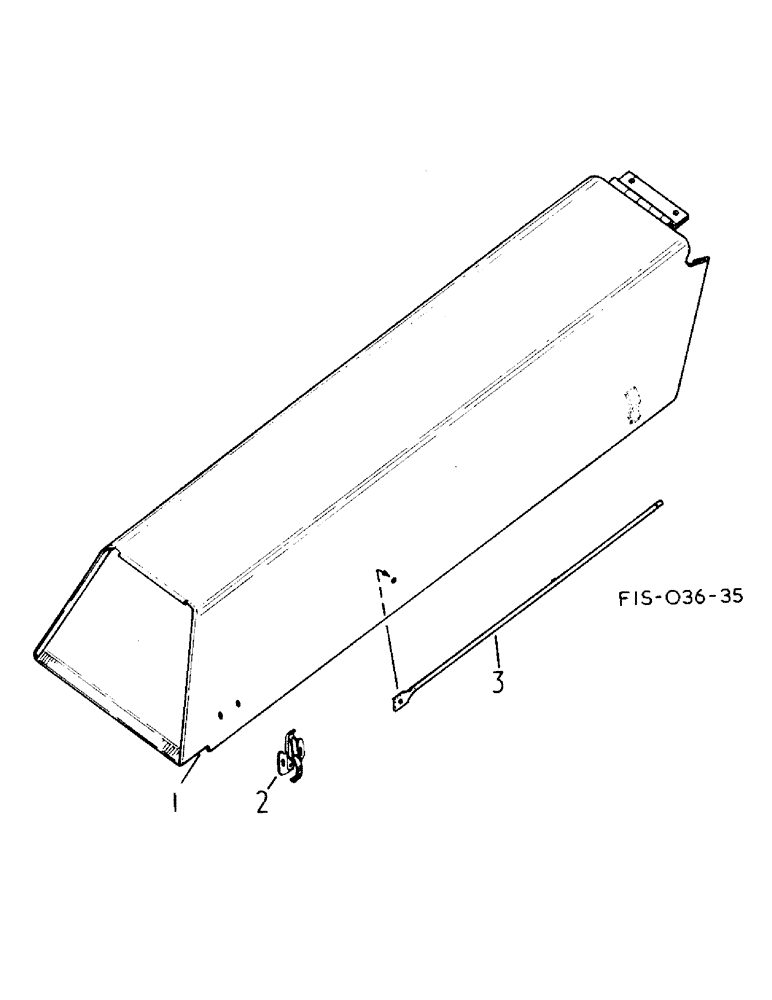

Запчасти Case IH 425 (A-46) - PLUNGER CRANK SHIELD

1

202588C1

SHIELD

plunger crank

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga

2шт.

2

669184R1

CLAMP

LATCH, shield

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

3479

WASHER,7/32" x 9/16" x .060"

11/32 x 9/16 x 16 ga

4шт.

3

3100127R2

ROD

stay

1шт.

231-2444

NUT,1/4"-28, GB

NUT, 1/4-28 philidas lock

1шт.

25-114

NUT,1/4"-28, G5

1/4-NF pln type 5

1шт.

20558R1

SCREW

1/4-28 x 3/4 slt-truss-hd mach

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.
