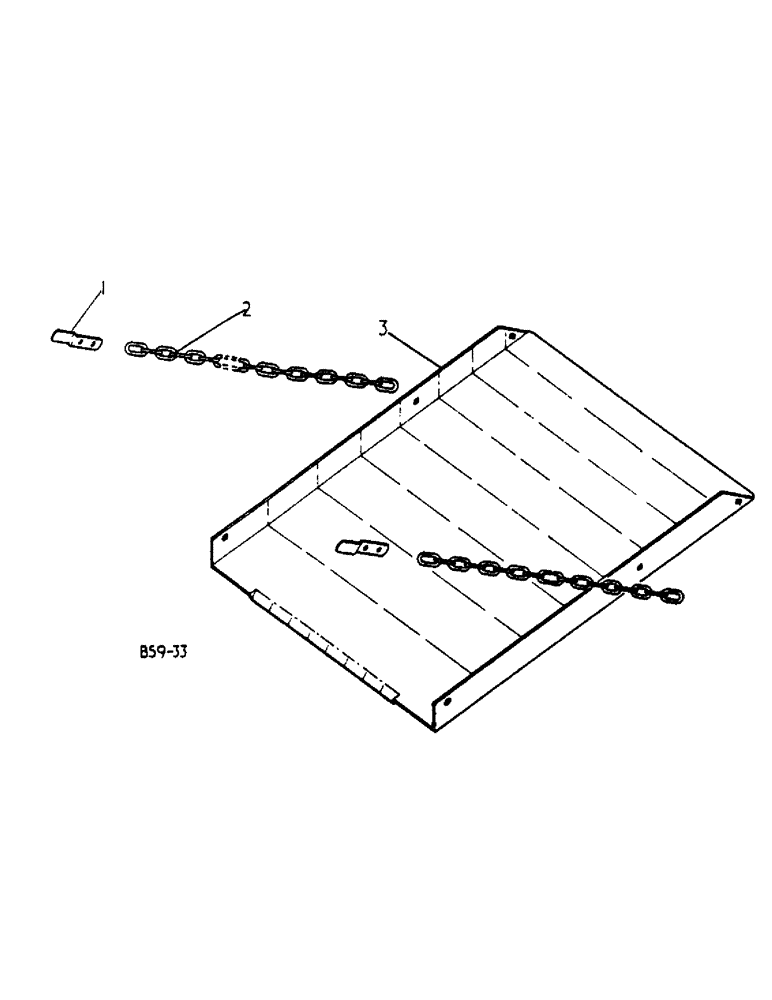

Запчасти Case IH 425 (A-45) - BALE CHAMBER EXTENSION

1

3101803R1

HOLDER

chain

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

495526R1

CHAIN (AG)

CHAIN, bale chamber extension holdup

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

668569R1

WASHER

.344 x 1.500 x .105

1шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

3

667693R1

EXTENSION

bale chamber

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 crg type 1

2шт.

3063614R1

NUT

7/16-14 hex lock

2шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.
