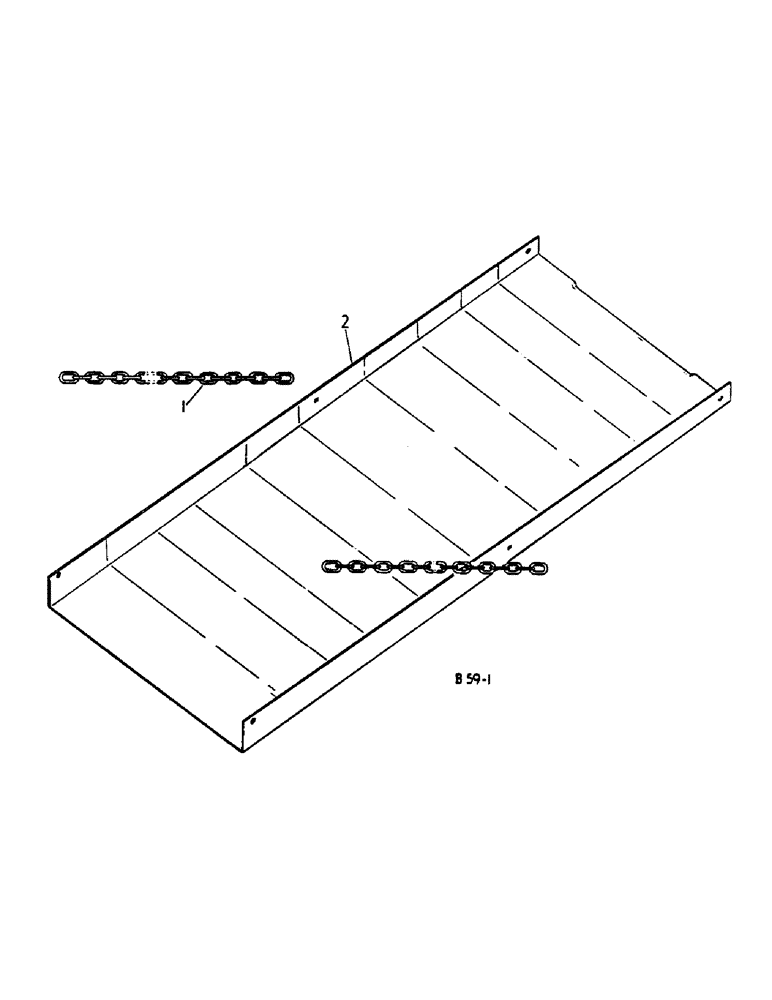

Запчасти Case IH 425 (A-44) - BALE CHUTE ATTACHMENT

1

669647R1

CHAIN (AG)

CHAIN, bale chute

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

668569R1

WASHER

.344 x 1.500 x .105

2шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

2

203091C1

CHUTE (DOWNWARD)

CHUTE, bale

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.
