Запчасти Case IH 425 (A-39) - PICKUP DRIVE

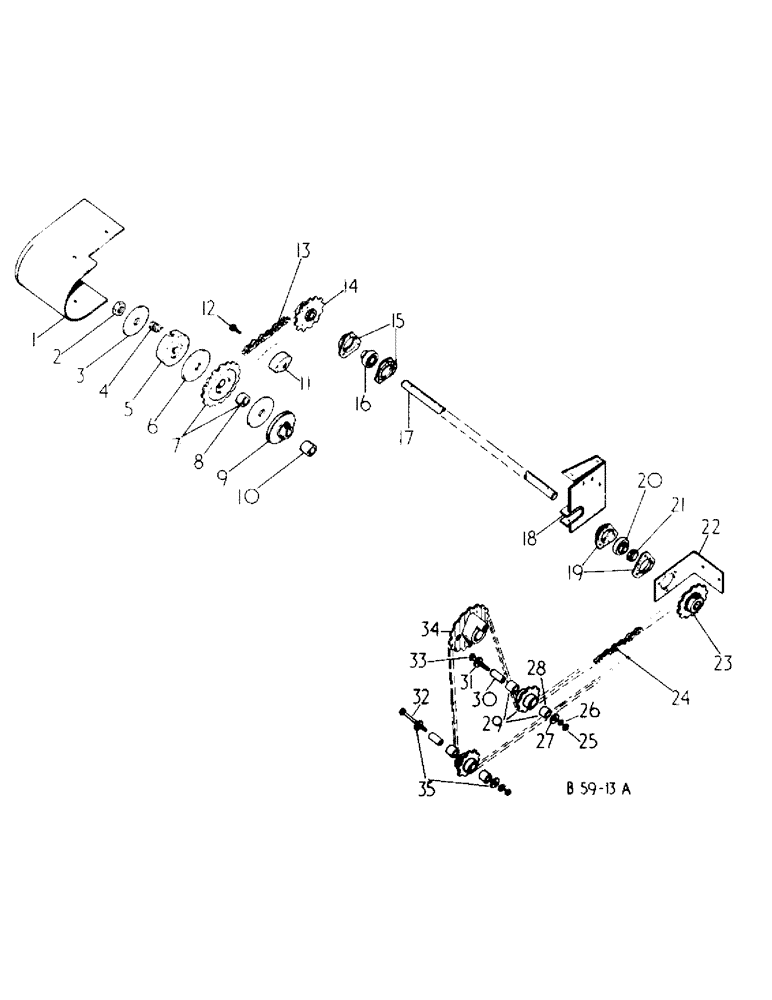

Схема запчастей Case IH 425 - (A-39) - PICKUP DRIVE

Артикул

Название

Примечание

Количество

1

3101736R2

SHIELD

ASSY, pickup drive

1шт.

180018

CONNECTING LINK

1/4 x 5/8 type 5

3шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 znd hex jam

1шт.

3

202090C1

WASHER

slip clutch retaining

1шт.

4

M1015

SPRING

slip clutch

6шт.

5

202399C1

HUB

slip clutch

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

6

662291R2

LINING

FACING, slip clutch

2шт.

7

753569R11

DRIVE SPROCKET

SPROCKET ASSY, pickup slip clutch

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

8

662079R1

BUSHING

1шт.

9

662026R4

HUB

slip clutch

1шт.

10

3101727R1

SPACER

1шт.

11

3166280R1

TENSIONER

pickup drive chain

1шт.

12

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, pickup drive chain strainer

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

13

CHAIN, pickup drive, use 19 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft roll marked 569089R91 & 1 connecting link, 456980R91

1шт.

14

662003R2

DRIVE SPROCKET

SPROCKET, pickup pivot driver

1шт.

3102365R1

PIN

pickup drive sprocket

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

15

571424R1

FLANGE

pickup brg

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13340

ADAPTER

WASHER, .344 x .688 x .051 pln

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

445965R92

BEARING ASSY, pickup drive shaft rear

1шт.

17

3101734R1

SHAFT

pickup drive rear

1шт.

18

3101728R1

BRACKET

ASSY, pivot drive shaft RH

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

.469 x 1.000 x .054

4шт.

19

571424R1

FLANGE

pickup brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

445965R92

BEARING ASSY, pickup drive shaft rear

1шт.

21

455102R21

COLLAR

bearing locking

1шт.

22

201666C1

BRACKET

pivot drive shaft LH

1шт.

179858

SUPPORT

7/16 x 1 pln type 5

2шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

23

662003R2

DRIVE SPROCKET

SPROCKET, pickup drive LH

1шт.

3102365R1

PIN

pickup drive sprocket

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

24

CHAIN, main drive pickup, use 83 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft roll marked 569089R91, 1 connecting link, 456980R91 & 2 offset links 456929R91

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 cot

1шт.

25

102639

NUT,5/8"-11, G5

2шт.

26

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

28

753885R1

BUSHING

4шт.

29

754462R92

DRIVE SPROCKET

SPROCKET ASSY

2шт.

30

3103311R1

SLEEVE

drive sprocket

2шт.

31

21791R1

WASHER

31/32 x 1-1/2 x 9 ga

1шт.

32

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 pln type 5, Course Threads

1шт.

33

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8-11 x 2-3/4 crg

1шт.

34

662025R1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type

5шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

21182R1

WASHER, 21/32 x 1-1/2 x 16 ga

1шт.

Выбрано товаров: 64
