(A-36) - PICKUP GAUGE WHEEL ATTACHMENT

Запчасти Case IH 425 (A-36) - PICKUP GAUGE WHEEL ATTACHMENT

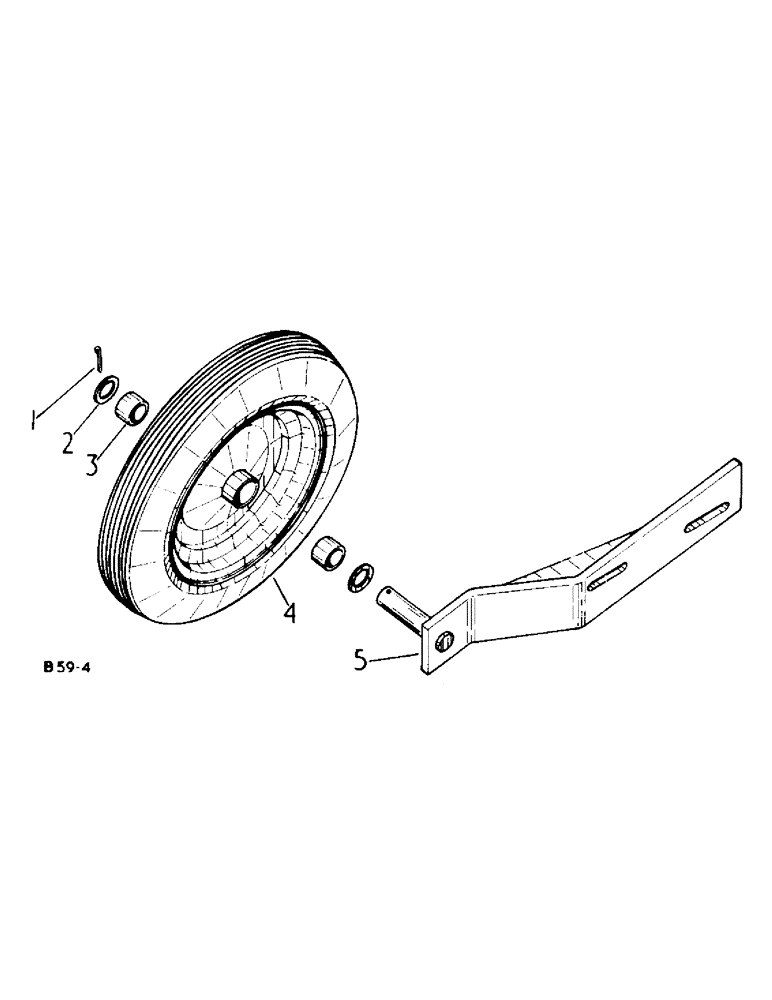

Схема запчастей Case IH 425 - (A-36) - PICKUP GAUGE WHEEL ATTACHMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

2

668752R1

WASHER

29/32 x 1-1/4 x 16 ga, (or as required)

4шт.

3

753885R1

BUSHING

7/8 x 1-1/8 x 3/4

2шт.

4

3102101R91

WHEEL (STEERING)

WHEEL ASSY, pickup

1шт.

5

3102097R1

BRACKET

ASY, pickup

1шт.

469668R1

WASHER

.406 x .734 x .056

2шт.
