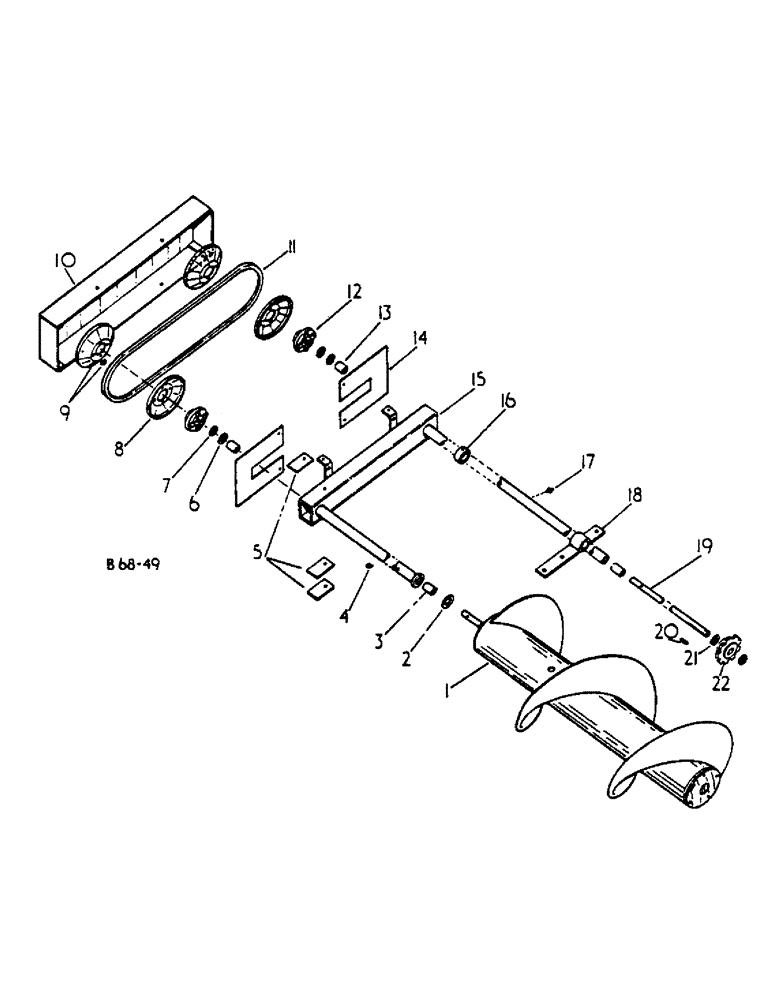

Запчасти Case IH 425 (A-35) - AUGER AND AUGER DRIVE SUPPORT

1

3101782R1

AUGER

ASSY

1шт.

2

3100617R1

THRUST WASHER

thrust

1шт.

NLS

NO LONGER SERVICED

29/32 x 2 x 16 ga, (or as required)

3шт.

3

495290R1

BUSHING

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping lub

1шт.

21784R1

WASHER

.266 x .500 x .054

1шт.

5

3101792R1

STOP

auger

3шт.

18776R1

BOLT,Hex, 5/16"-18 x 5 1/2", G2

5/16 x 5-1/2 type 1

1шт.

632225R1

LOCK NUT

5/16 whiz flanged lock

1шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

6

20703R1

WASHER

29/32 x 1-3/4 x 16 ga, (or as required)

6шт.

7

23365R1

WASHER

29/32 x 1-11/32 x 20 ga, (or as required)

4шт.

8

495480R1

PULLEY

auger drive sheave

4шт.

9

Q397

WASHER

11/32 x 3/4 x 16 ga

40шт.

10

3103016R1

SHIELD

ASSY, auger drive

1шт.

181591

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 type 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

3103014R2

BELT,1431.69 mm L

Auger drive 1431.69 mm L

1шт.

12

754621R1

HUB

V sheave

2шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

8шт.

13

495290R1

BUSHING

2шт.

14

3103015R1

PLATE

auger drive shield back

2шт.

181591

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 type 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

3102994R91

ARM

W/4 BUSHING 495290R1, auger relief

1шт.

16

3103005R1

COLLAR

auger pivot tube locking

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 C/PT znp hdl/s set

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping lub

1шт.

21784R1

WASHER

.266 x .500 x .054

1шт.

18

3103001R1

BEARING ASSY,35.875 mm ID

BEARING ASSY, auger pivot tube

1шт.

NLS

NO LONGER SERVICED

3шт.

102635

NUT,3/8"-16, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

3шт.

19

3103000R1

SHAFT

auger drive

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 hd type 1

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

Q53

KEY,1/4" Sq x 1", Par

1шт.

21

668752R1

WASHER

29/32 x 1-1/4 x 16 ga znd, (or as required)

7шт.

22

3103007R1

DRIVE SPROCKET

SPROCKET, auger drive shaft

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.
