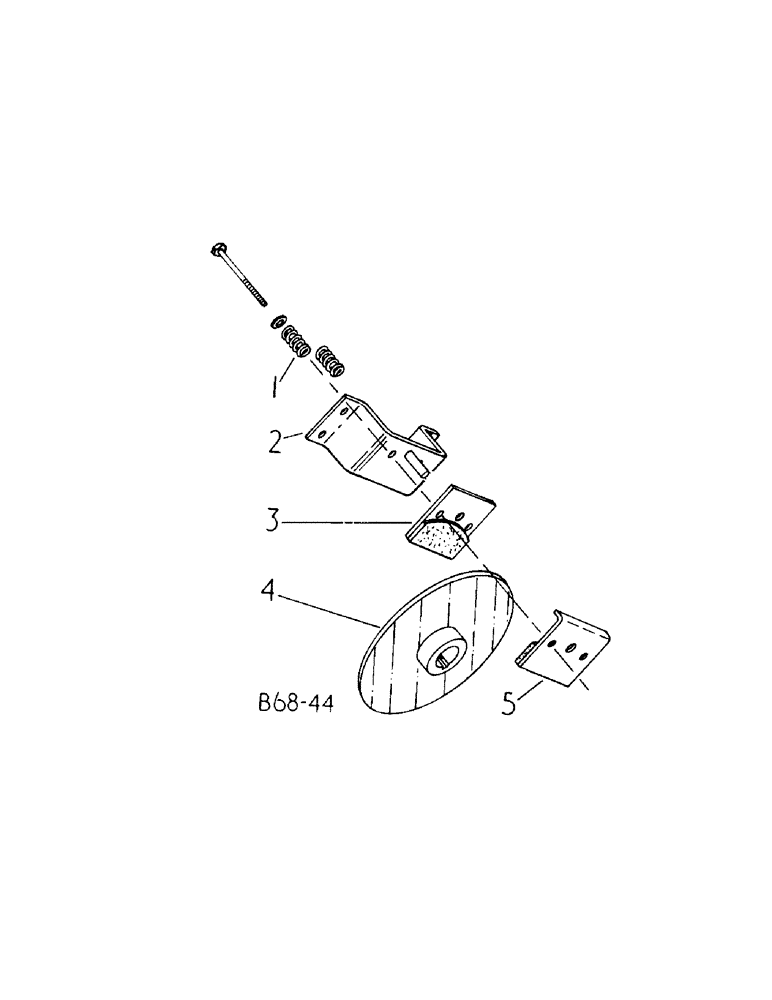

Запчасти Case IH 425 (A-34) - KNOTTER SHAFT BRAKE

1

U13033

SPRING

knotter brake

2шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 type 1

2шт.

120376

NUT,5/16"-18, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

2

3102911R1

SUPPORT

ASSY, knotter brake

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

3101603R1

BRAKE

ASSY, knotter shaft RH

1шт.

4

3102914R1

DISC

ASSY, knotter brake

1шт.

5

3101602R1

BRAKE

ASSY, knotter shaft LH

1шт.
