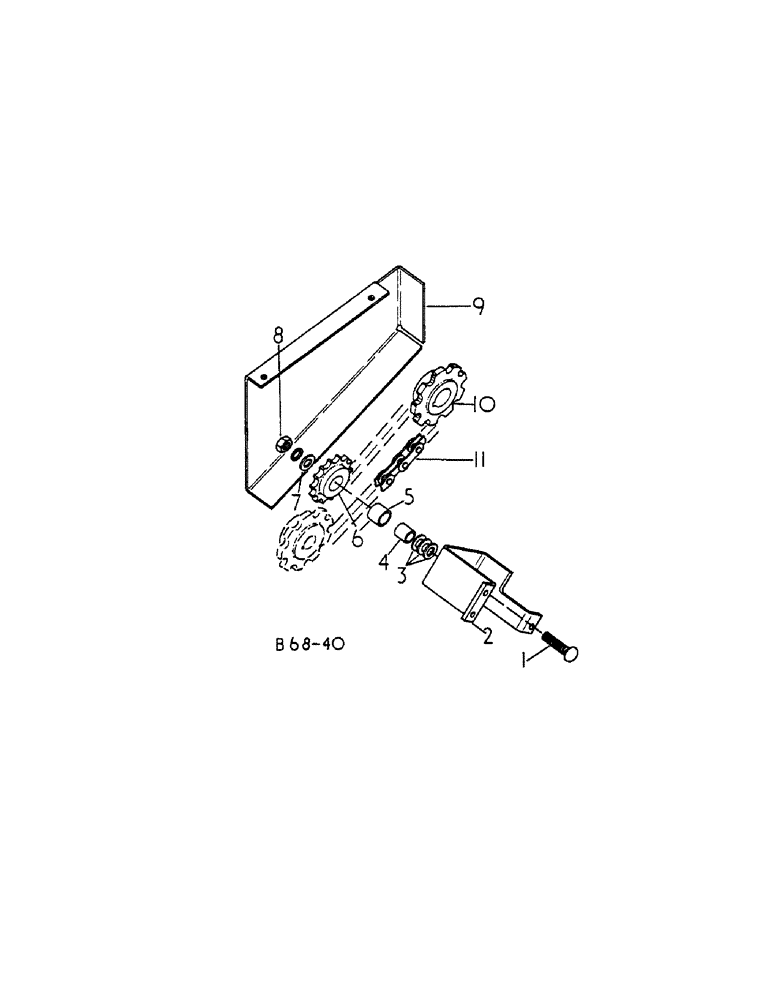

Запчасти Case IH 425 (A-34[A]) - AUGER DRIVE CHAIN

1

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 crg

1шт.

2

3102910R1

SUPPORT

auger chain tensioner

1шт.

3

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074

1шт.

4

3103013R2

SPACER

1шт.

5

3103012R1

PRESS

BUSHING, sprocket

1шт.

6

3103010R91

DRIVE SPROCKET

SPROCKET, w/bushing, tensioner auger drive chain

1шт.

7

495-11053

WASHER,1/2", SAE

13/32 x 1-16 x .074

1шт.

8

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

9

3103009R1

SHIELD

auger drive chain

1шт.

704445R1

NUT

1/4-20 spire speed

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt truss hd

2шт.

10

3103006R1

DRIVE SPROCKET

SPROCKET, auger drive

1шт.

11

CHAIN, auger drive, use 13 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft roll marked 569089R91, 1 connecting link, 456980R91 & 1 offset link, 456929R91

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 cot

1шт.
