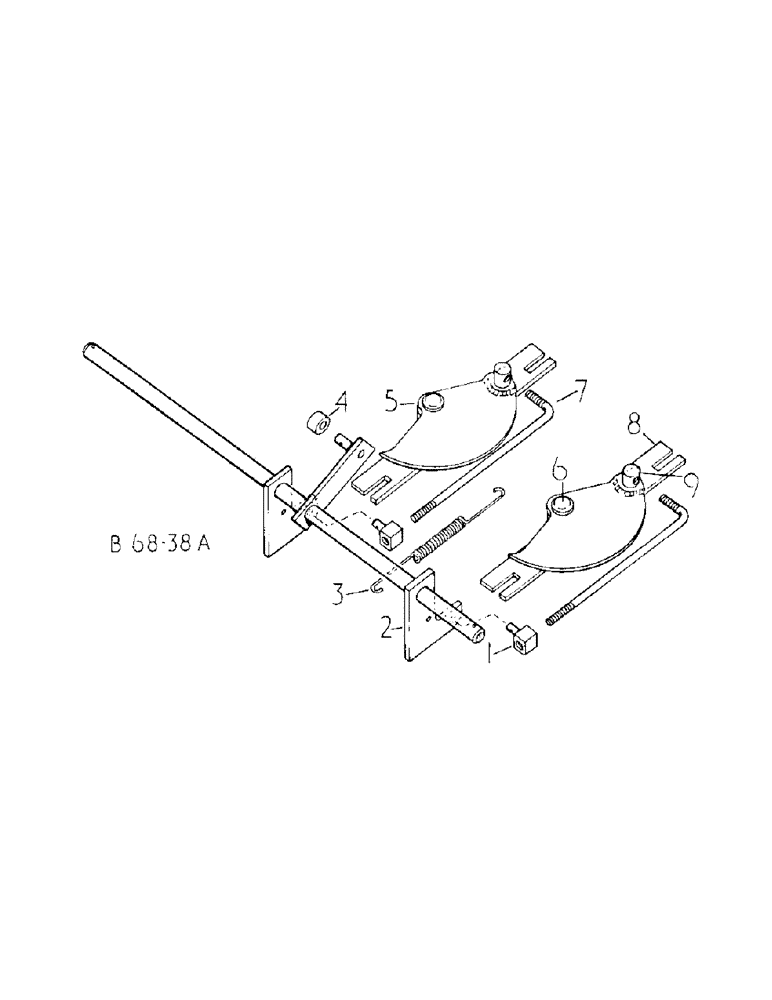

Запчасти Case IH 425 (A-33) - TUCKER FINGERS, 1980 AND SINCE

1

3102864R1

STUD

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

3102852R1

ROD

ASSY, tucker finger

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

Q3478

WASHER

.781 x 1.250 x .067 pln, (or as required)

4шт.

3

3102857R1

SPRING

tension

1шт.

4

3102858R1

SPACER

ROLLER, pivot tucker finger

1шт.

20869R1

WASHER

.531 x .875 x .054

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

3103816R91

PLATE

FINGER ASSY, tucker

2шт.

5

3102860R1

FINGER

2шт.

6

3103818R1

PIVOT

2шт.

7

3102865R1

ROD

tucker finger

2шт.

8

3103817R1

SUPPORT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

9

3102861R1

STUD

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.
