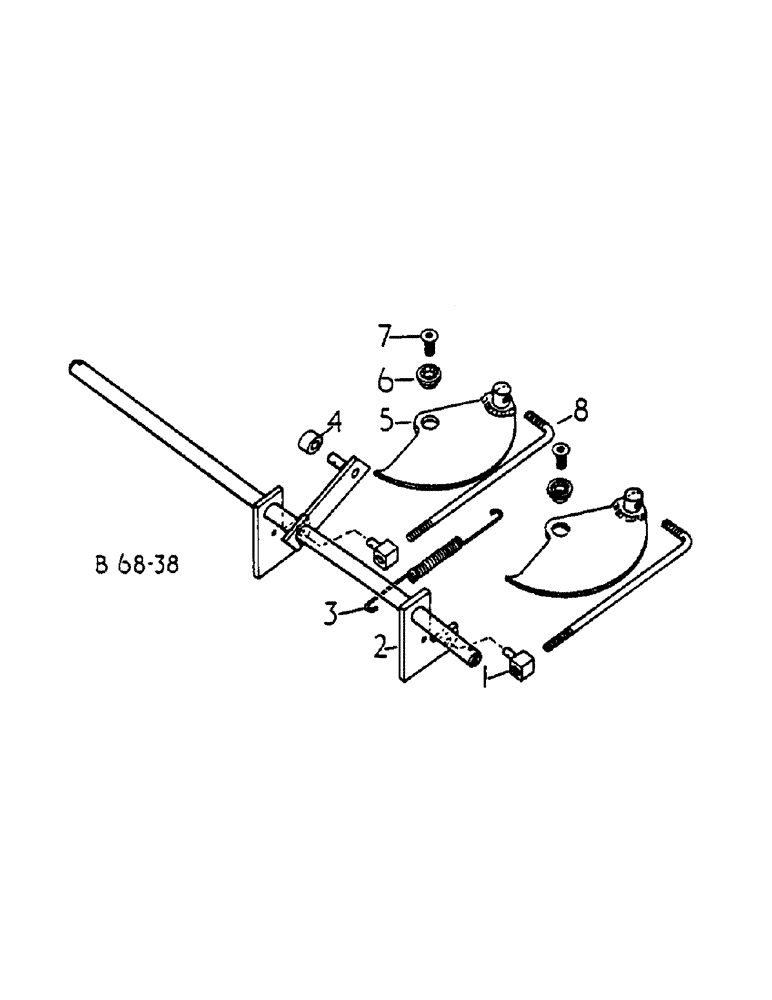

Запчасти Case IH 425 (A-32) - TUCKER FINGERS, UP TO 1979

1

3102864R1

STUD

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

3102852R1

ROD

ASSY, tucker finger

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

Q3478

WASHER

.781 x 1.250 x .067 pln, (or as required)

4шт.

3

3102857R1

SPRING

tension

1шт.

4

3102858R1

SPACER

ROLLER, pivot tucker finger

1шт.

20869R1

WASHER

.531 x .875 x .054

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

3102859R1

FINGER

ASSY, tucker

2шт.

6

3102862R1

BUSHING

2шт.

7

3102863R1

BOLT (SPREADER)

BOLT

2шт.

95-11041

WASHER,3/8"

.406 x .812 x .051 pln

2шт.

102635

NUT,3/8"-16, G5

2шт.

8

3102865R1

ROD

tucker finger

2шт.
