Запчасти Case IH 425 (A-30) - KNOTTER DRIVE CHAIN AND REAR SHAFT

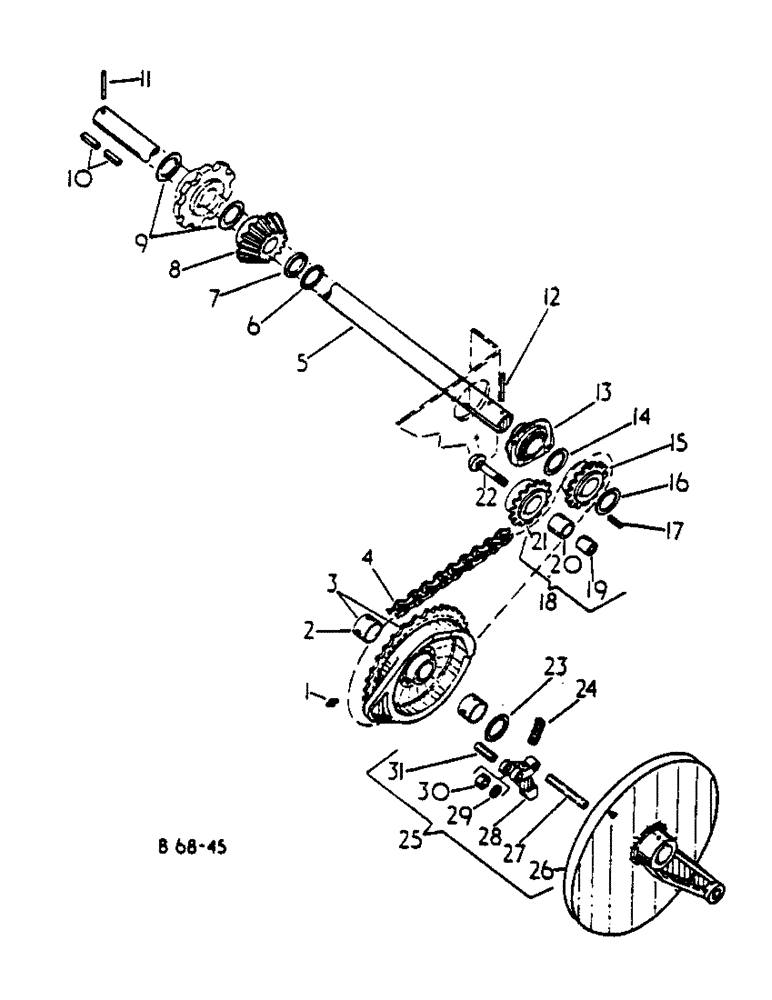

Схема запчастей Case IH 425 - (A-30) - KNOTTER DRIVE CHAIN AND REAR SHAFT

Артикул

Название

Примечание

Количество

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

3102899R91

BEARING, sprocket knotter

2шт.

3

3102897R91

DRIVE SPROCKET

SPROCKET ASSY, knotter shaft

1шт.

4

CHAIN, knotter drive, use 27 links of 5/8 single pitch roller chain from 10 ft roll marked 1791D, 1 connecting link, 1310D & 1 offset link, 1315D

1шт.

5

3102896R1

SHAFT

rear knotter drive

1шт.

6

23041R1

WASHER

1/5-32 x 1-1/2 x .054, (or as required)

3шт.

7

3102895R1

SPACER

gear pinion

1шт.

8

3102894R1

GEAR

pinion knotter drive

1шт.

9

Q162

WASHER

1.156 x 1.750 x 0.054, (or as required)

4шт.

10

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1

1шт.

11

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

12

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

13

3103088R91

BEARING ASSY,28.575 mm ID x 44.45 mm OD x 35.7 mm

ASSY, knotter drive shaft, consists of

1шт.

3102886R1

BEARING

1шт.

3102887R1

COLLAR

1шт.

3102888R1

NO LONGER SERVICED

FLANGE

2шт.

13

3102889R91

BEARING ASSY,28.588 mm ID x 40 mm OD

ASSY, knotter drive shaft, consists of

1шт.

3103085R1

JOURNAL

BEARING ASSY

1шт.

3102891R1

FLANGE

1шт.

13

3103086R91

JOURNAL

BEARING ASSY, knotter drive shaft

1шт.

3102890R1

BEARING

1шт.

3102891R1

FLANGE

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

23041R1

WASHER

1-5/32 x 1-1/2 x .054 C-Z

1шт.

15

3102901R1

DRIVE SPROCKET

SPROCKET, knotter drive

1шт.

16

23041R1

WASHER

1/5-32 x 1-1/2 x .054 C-Z, (or as required)

3шт.

17

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1

1шт.

18

3103010R91

DRIVE SPROCKET

SPROCKET ASSY, tensioner

1шт.

19

3103013R2

SPACER

sprocket

1шт.

20

3103012R1

PRESS

BUSHING, sprocket tensioner

1шт.

21

SPROCKET, tensioner, not serviced

1шт.

22

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 sq nk crg

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

3102900R1

THRUST WASHER

thrust

2шт.

24

753027R1

SPRING

trip dog

1шт.

25

3102903R1

CARRIER ASSY, trip dog

1шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

1шт.

26

CARRIER, not serviced

1шт.

27

3102907R2

PIVOT

trip dog

1шт.

28

3102905R91

PAWL

W/ROLLER AND STUD, trip

1шт.

29

21755R1

WASHER

15/32 x 3/16 x 18 ga C-Z, (or as required)

1шт.

29

21756R1

WASHER

15/32 x 22 ga C-Z, (or as required)

1шт.

30

V341

PAWL

ROLLER, trip dog

1шт.

31

V690

PIN

STUD, trip dog roller

1шт.

Выбрано товаров: 48
